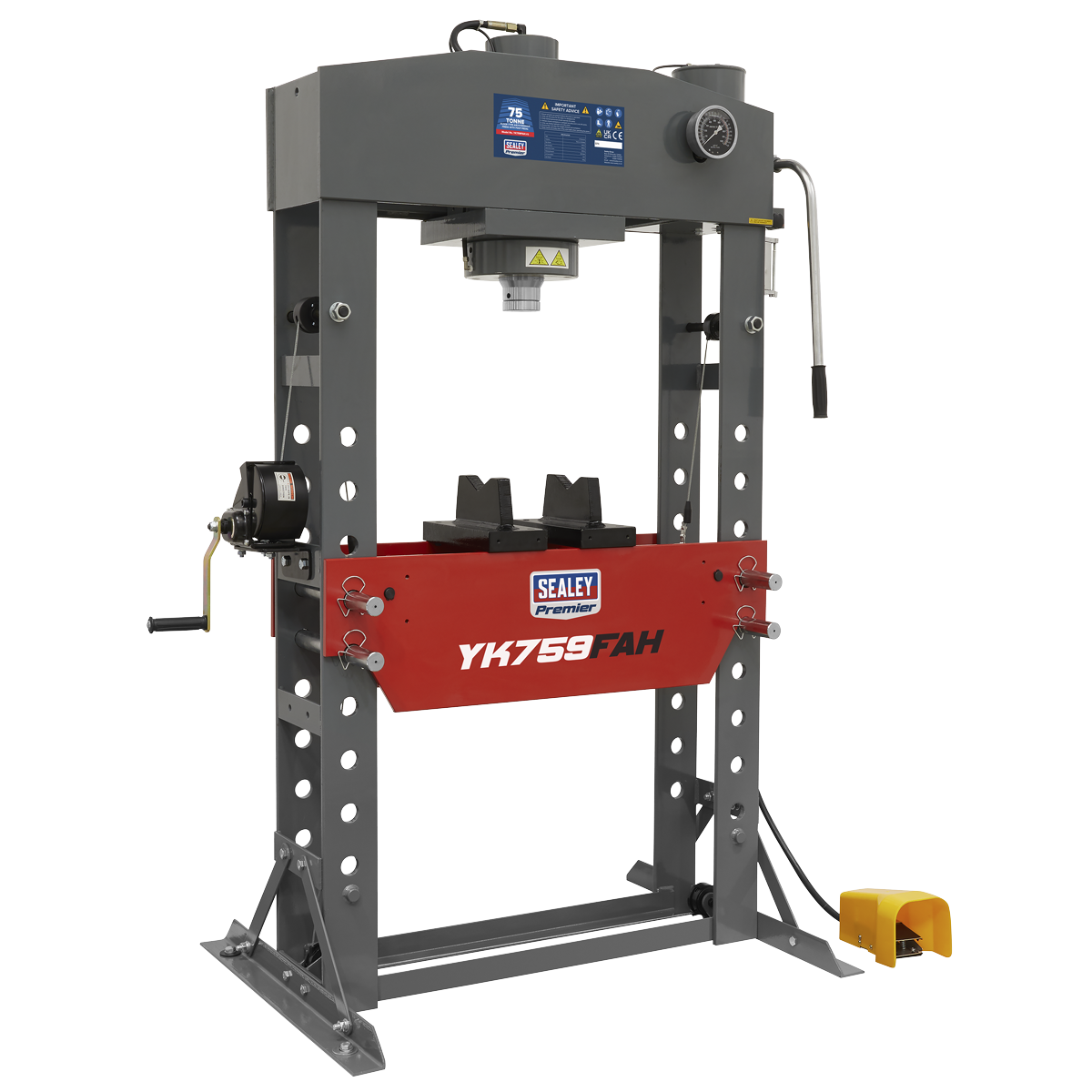

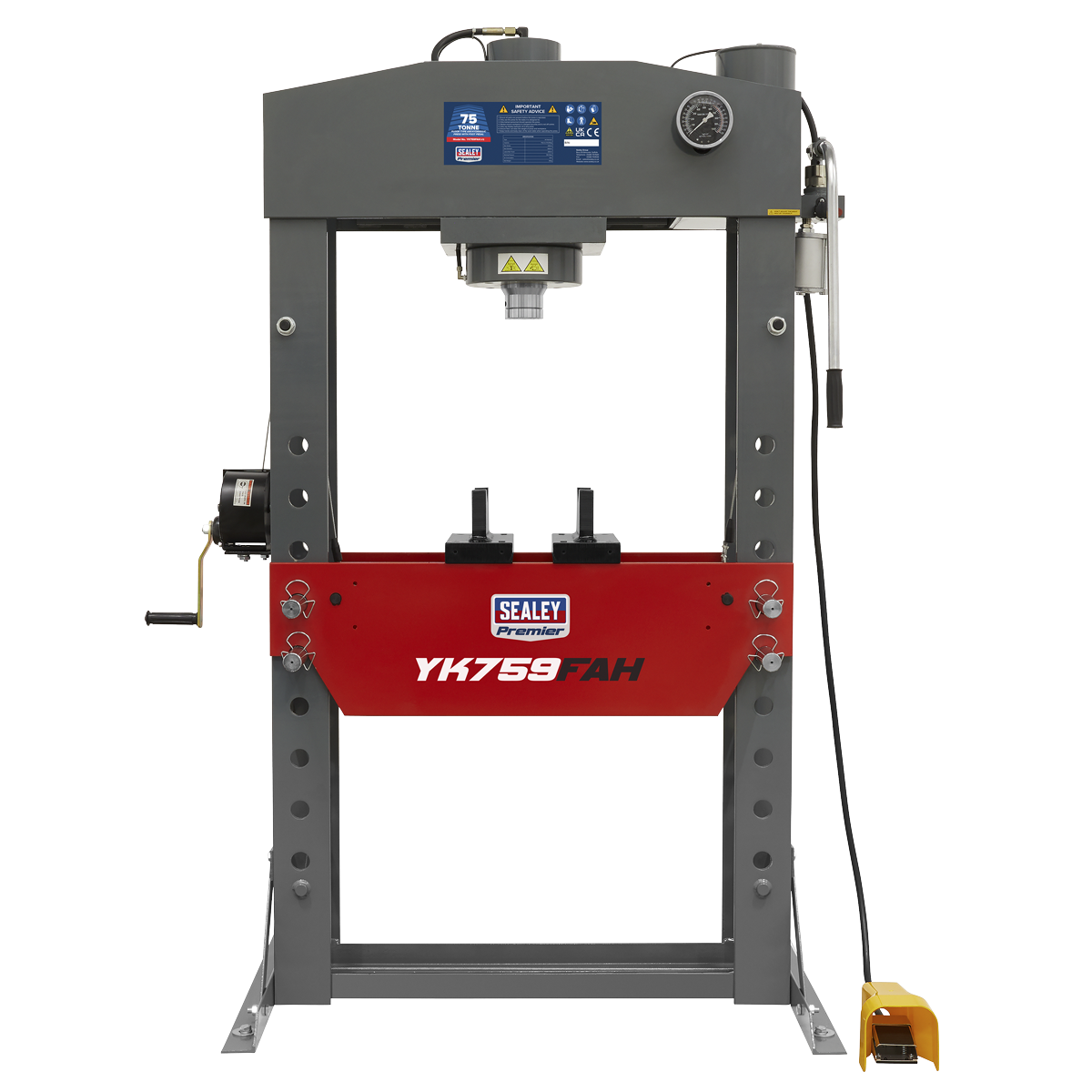

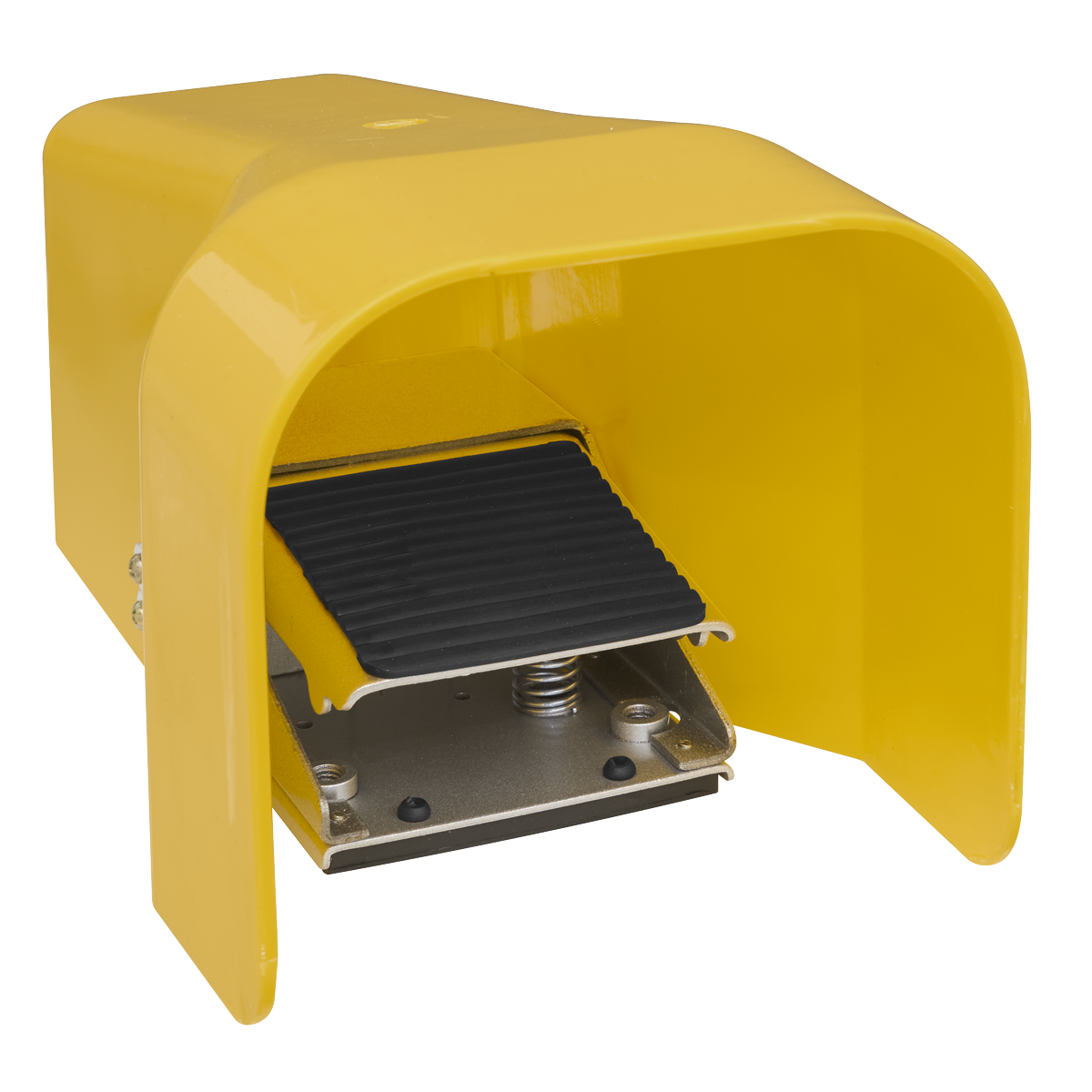

Premier Air/Hydraulic Floor Type Press with Foot Pedal 75 Tonne YK759FAH

Name: Premier Air/Hydraulic Floor Type Press with Foot Pedal 75 Tonne YK759FAH
SKU: PREMIER-YK759FAH
Price: 4858.92 GBP
Availability: InStock

£4,858.92 GBP

~~£5,159.94 GBP~~ £4,858.92 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Steel frame construction with side mounted air motor powering hydraulic pump unit. 2-Speed manual operation and sliding hydraulic ram assembly giving 260mm of lateral travel for off-centre pressing applications.
Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.

• Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.
• 2-Speed manual operation.
• Sliding hydraulic ram assembly giving 260mm of lateral travel for off-centre pressing applications.
• Fitted with ram pressure gauge.
• Supplied with flat pressing plate/V-blocks.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• A forklift must be available at the delivery point to unload this item.
• 5 Year guarantee*.

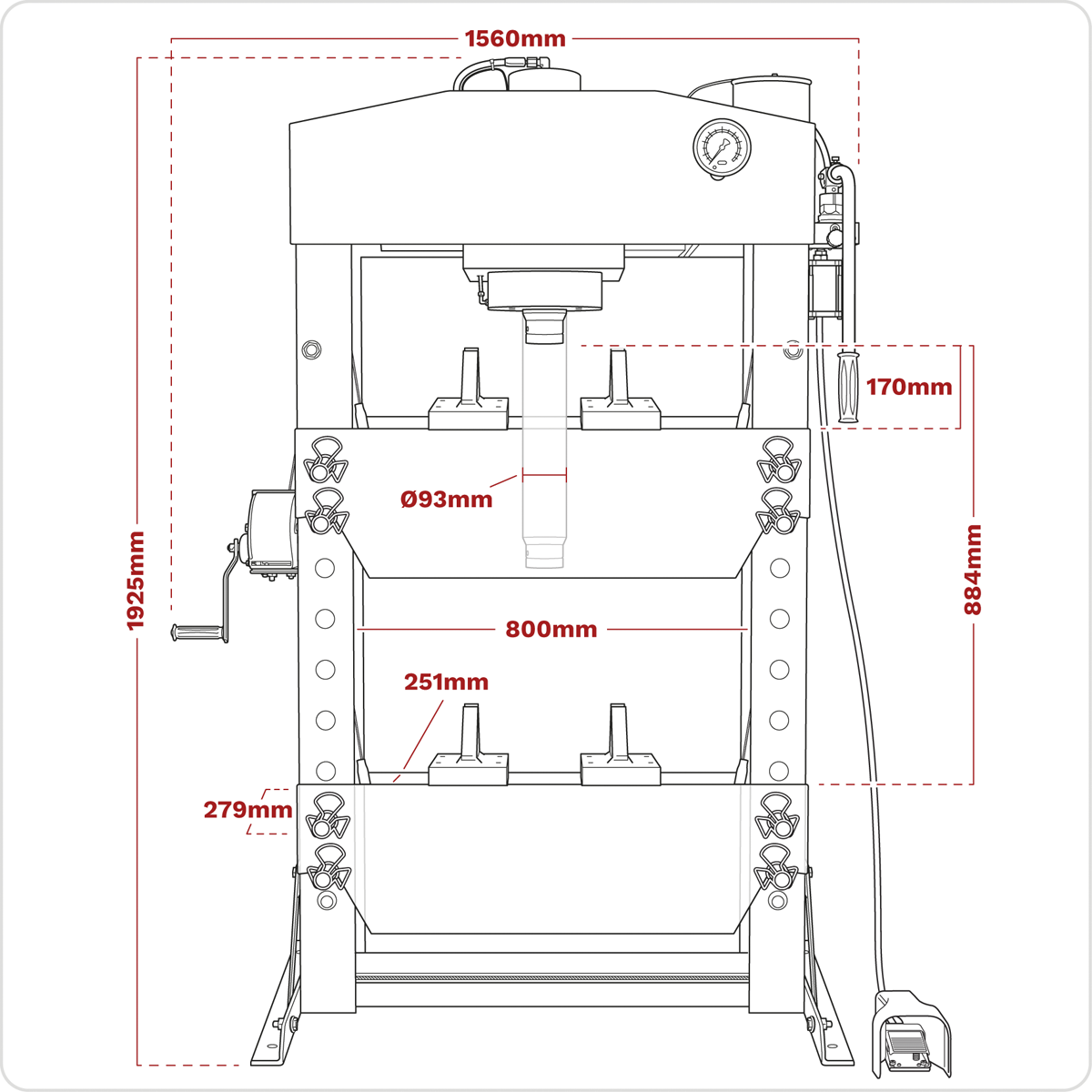

Specifications

Model No	YK759FAH
Air Consumption:	7cfm
Bench or Floor Mounting:	Floor
Brand:	Premier
Capacity:	75 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	260mm
Maximum Height - Ram to Table:	884mm
Minimum Height - Ram to Table:	170mm
Nett Weight:	451kg
Operating Table Width:	800mm

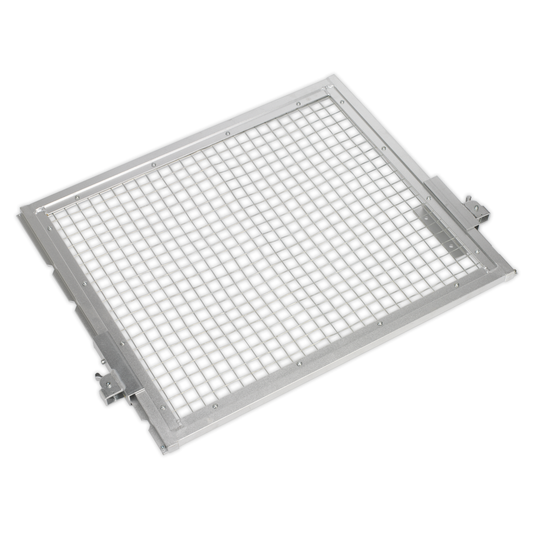

Optional Accessories:	YKSG75 - Safety Guard, YKPP8 - Press Pin Set
Overall Height:	1925mm
Ram Diameter:	Ø93mm
Ram Stroke:	250mm
Table Aperture:	251mm
Type:	Air/Hydraulic
Working Table Depth:	279mm
Working Table Width:	1020mm
