Premier Air/Hydraulic Floor Type Press with Foot Pedal 50 Tonne YK509FAH

Name: Premier Air/Hydraulic Floor Type Press with Foot Pedal 50 Tonne YK509FAH
SKU: PREMIER-YK509FAH
Price: 3229.52 GBP
Availability: InStock

£3,229.52 GBP

~~£3,479.94 GBP~~ £3,229.52 GBP

Reduced by £250.42 Sold out

Taxes included (if in UK). Shipping calculated at checkout.

Quantity

Currently out of stock, please contact us for ETA

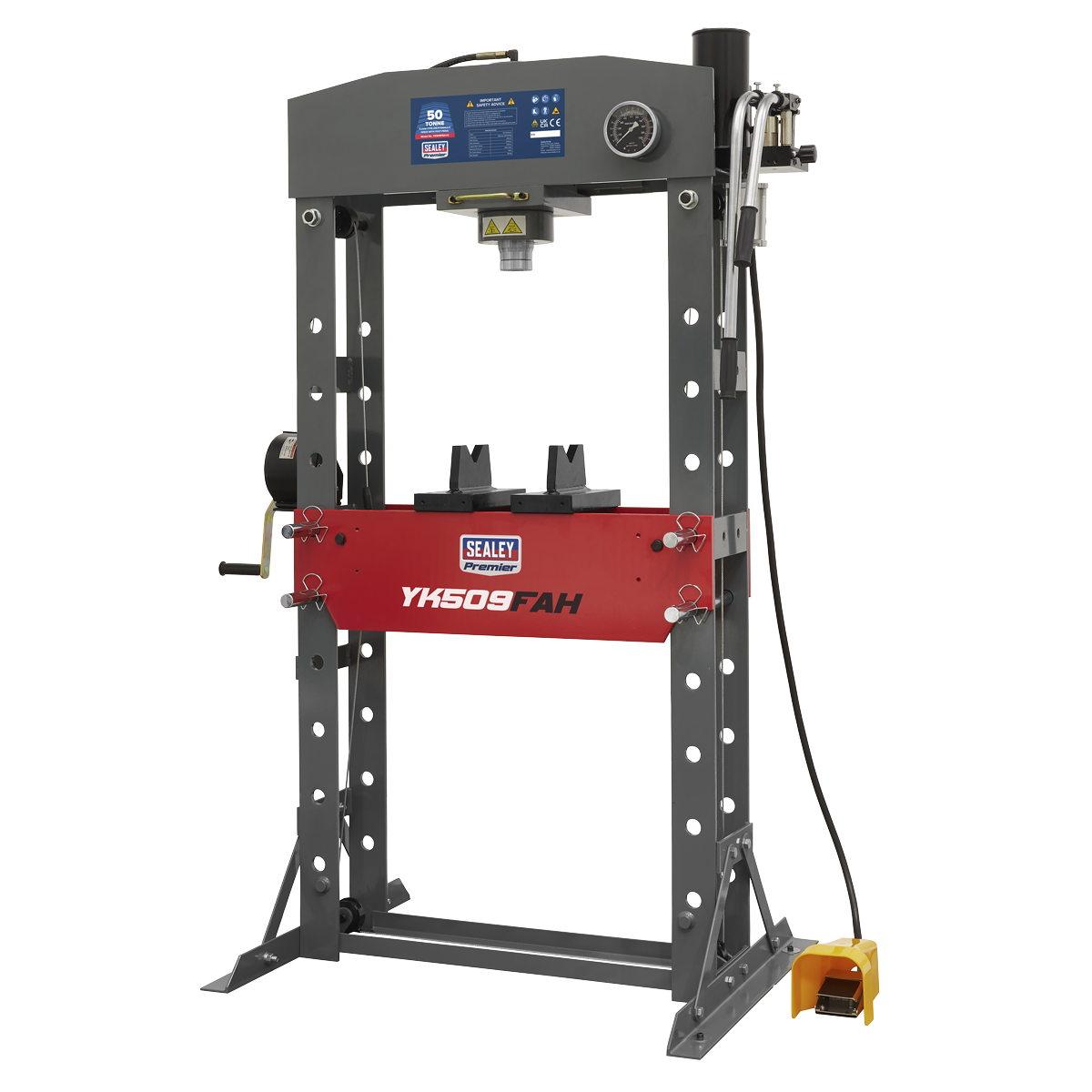

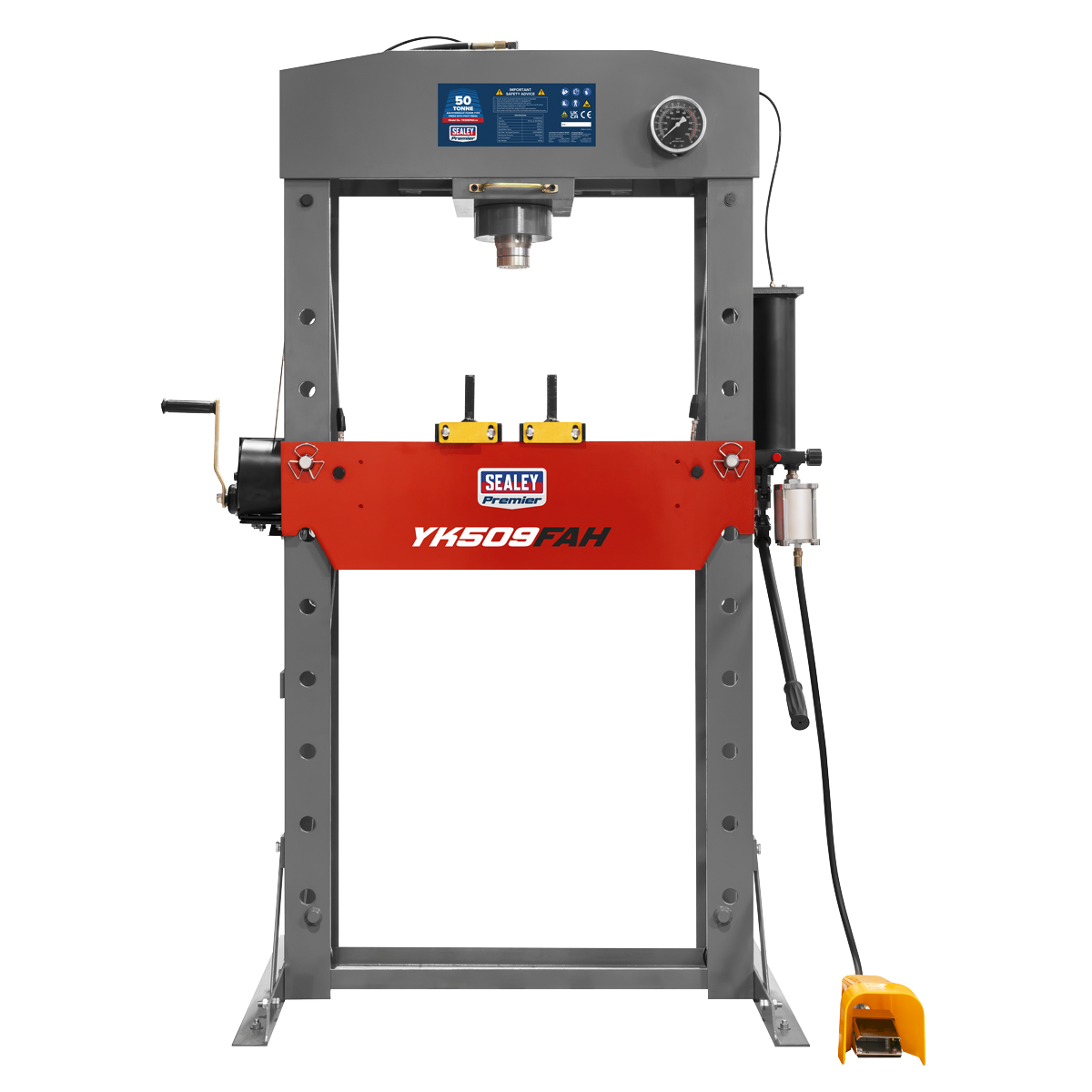

Steel frame construction with side mounted air motor powering hydraulic pump unit. 2-speed manual operation and sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with table winch and flat pressing plate/V-blocks.

• Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.
• 2-Speed manual operation.
• Sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications.
• Fitted with ram pressure gauge.
• Supplied with table winch and flat pressing plate/V-blocks.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• IMPORTANT – A forklift must be available at the delivery point to unload this item.
• 5 Year guarantee*.

Specifications

Model No	YK509FAH
Air Consumption:	7cfm
Bench or Floor Mounting:	Floor
Brand:	Premier
Capacity:	50 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	245mm
Maximum Height - Ram to Table:	1047mm
Minimum Height - Ram to Table:	67mm
Nett Weight:	302.5kg
Operating Table Width:	730mm

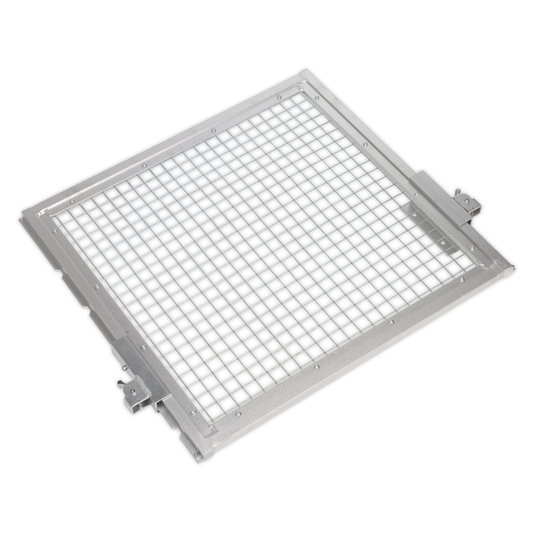

Optional Accessories:	YKSG50 - Safety Guard, YKPP8 - Press Pin Set
Overall Height:	1877mm
Ram Diameter:	Ø75mm
Ram Stroke:	200mm
Table Aperture:	235mm
Type:	Air/Hydraulic
Warranty Information:	This is test warranty information.
Working Table Depth:	259mm
Working Table Width:	910mm
