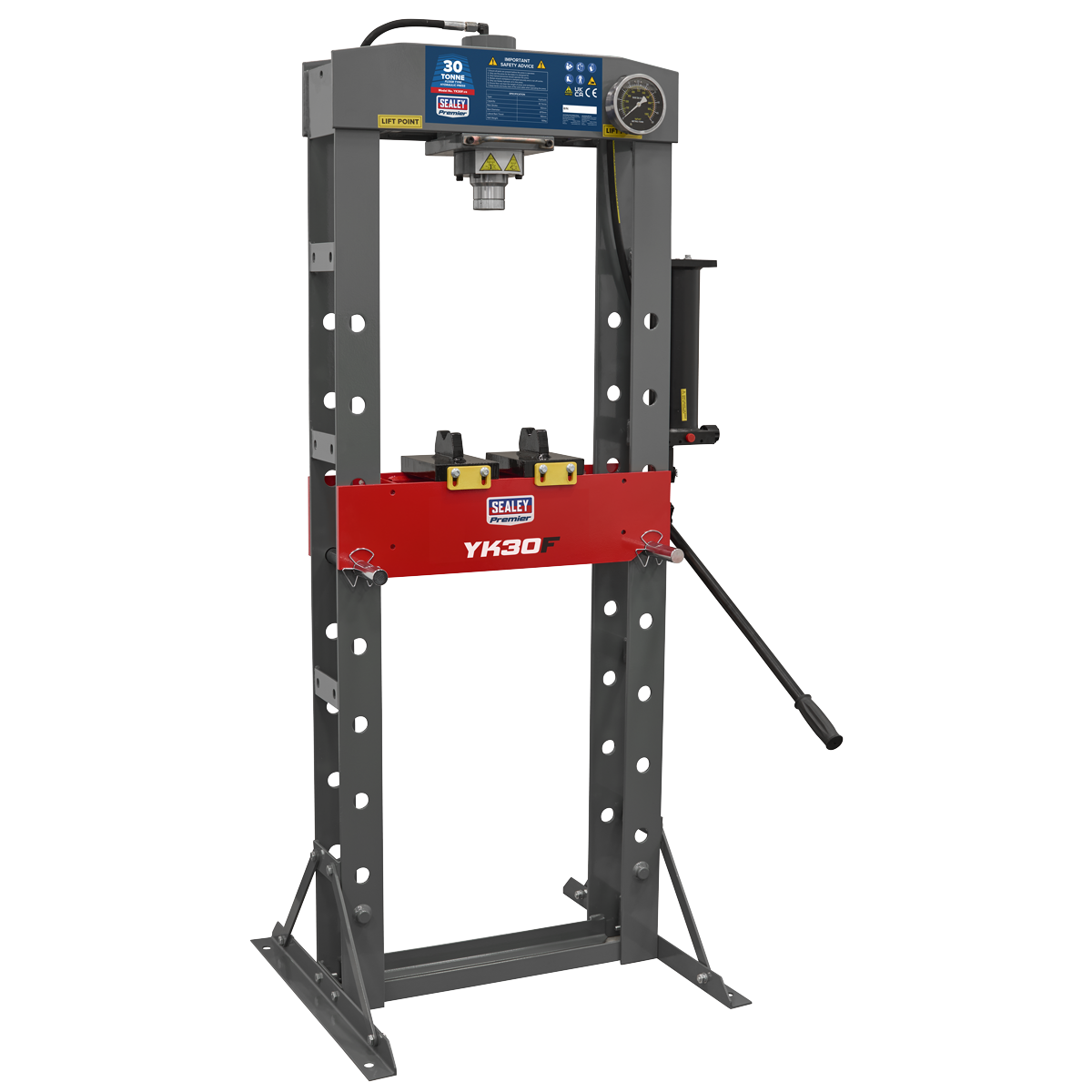

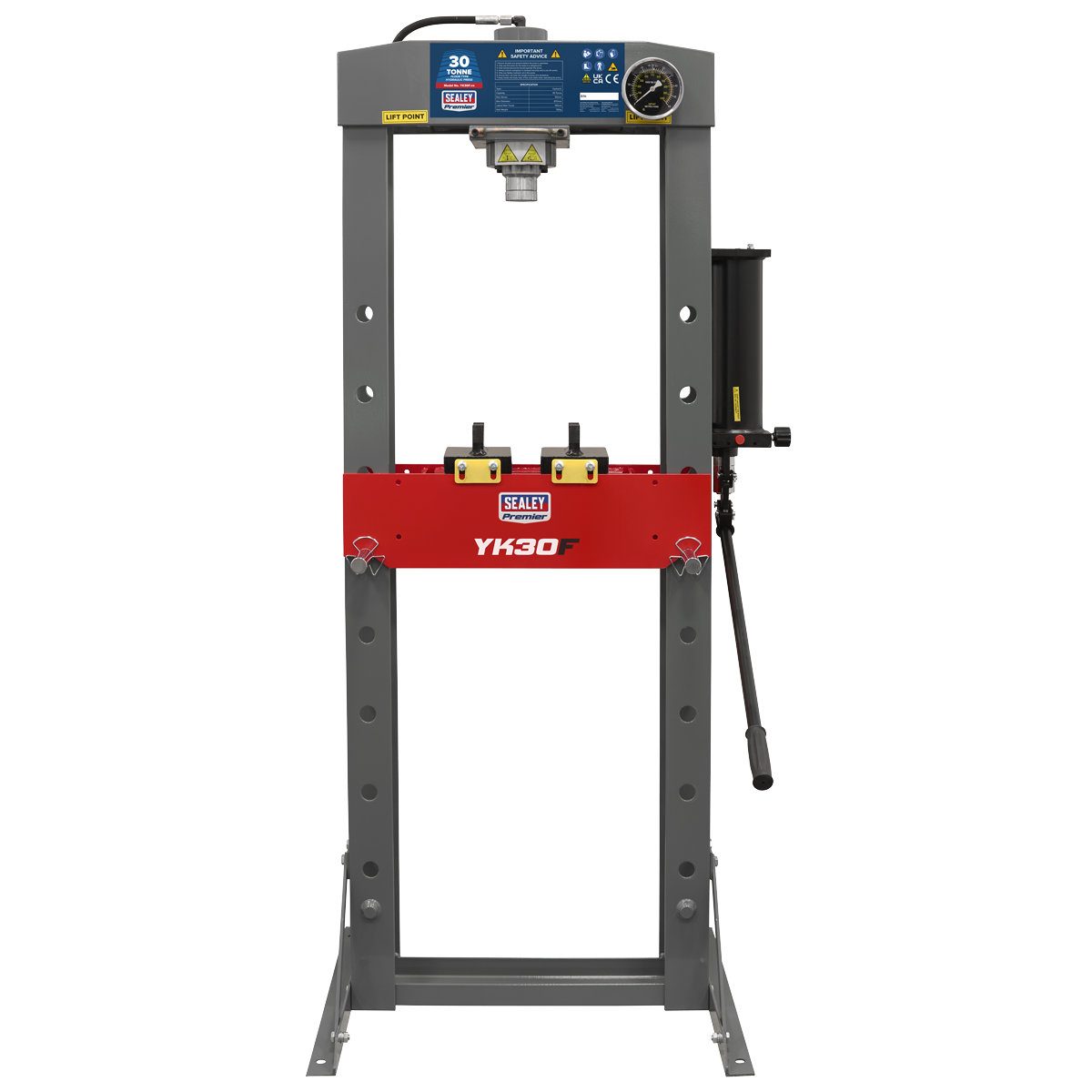

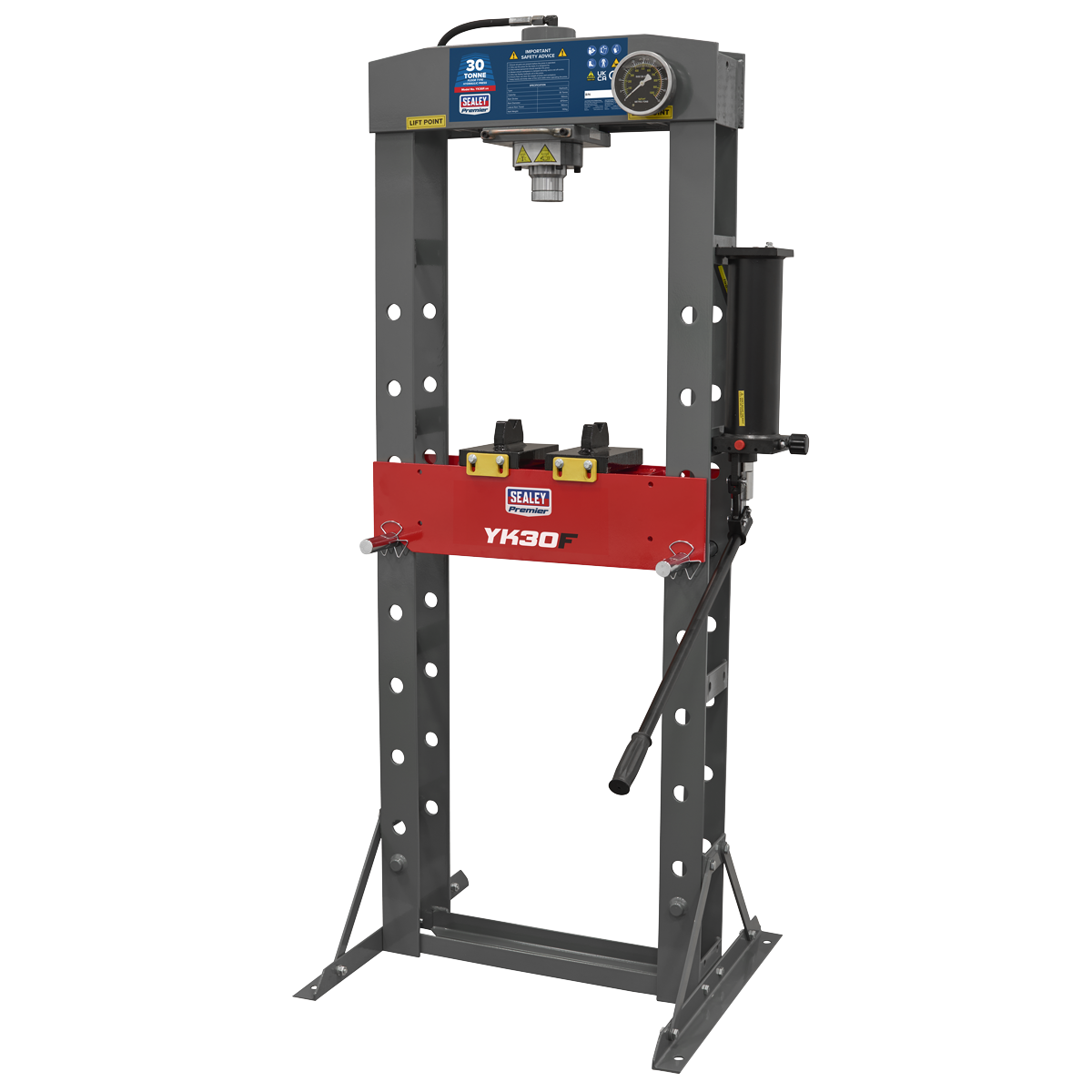

Premier Hydraulic Floor Type Press 30 Tonne YK30F

Name: Premier Hydraulic Floor Type Press 30 Tonne YK30F
SKU: PREMIER-YK30F
Price: 1525.66 GBP
Availability: InStock

£1,525.66 GBP

~~£1,619.94 GBP~~ £1,525.66 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Steel frame construction with 2-speed hydraulic pump unit. Sliding hydraulic ram assembly gives 200mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.

• HEAVY-DUTY - Steel frame construction with 2-speed hydraulic pump unit.
• LATERAL SLIDING ADJUSTMENT - Sliding hydraulic ram assembly gives 200mm of lateral travel for off-centre pressing applications.
• INTEGRATED GAUGE - Frame head fitted with ram pressure gauge.
• ACCESSORIES - Supplied with flat pressing plate/V-blocks.
• EXTENDED WARRANTY - 5 Year guarantee*.
• *This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specifications

Model No	YK30F
Bench or Floor Mounting:	Floor
Brand:	Premier
Capacity:	30 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	190mm
Maximum Height - Ram to Table:	1035mm
Minimum Height - Ram to Table:	55mm
Nett Weight:	130kg
Operating Table Width:	490mm

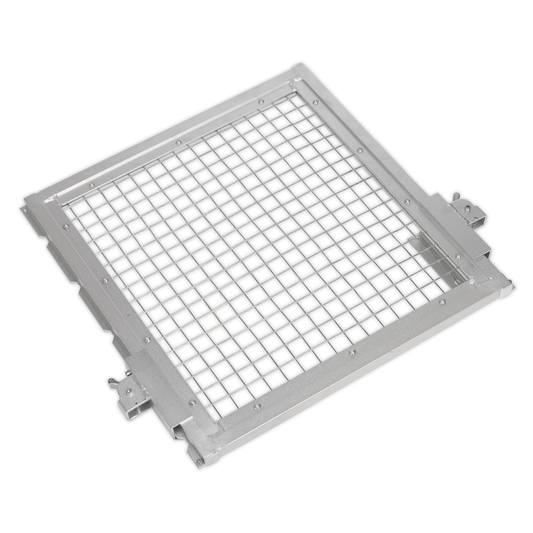

Optional Accessories:	YKSG20 - Safety Guard, YKPP8 - Press Pin Set
Overall Height:	1775mm
Ram Diameter:	Ø70mm
Ram Stroke:	150mm
Screw Extension:	N/A
Table Aperture:	152mm
Type:	Hydraulic
Working Table Depth:	172mm
Working Table Width:	650mm
