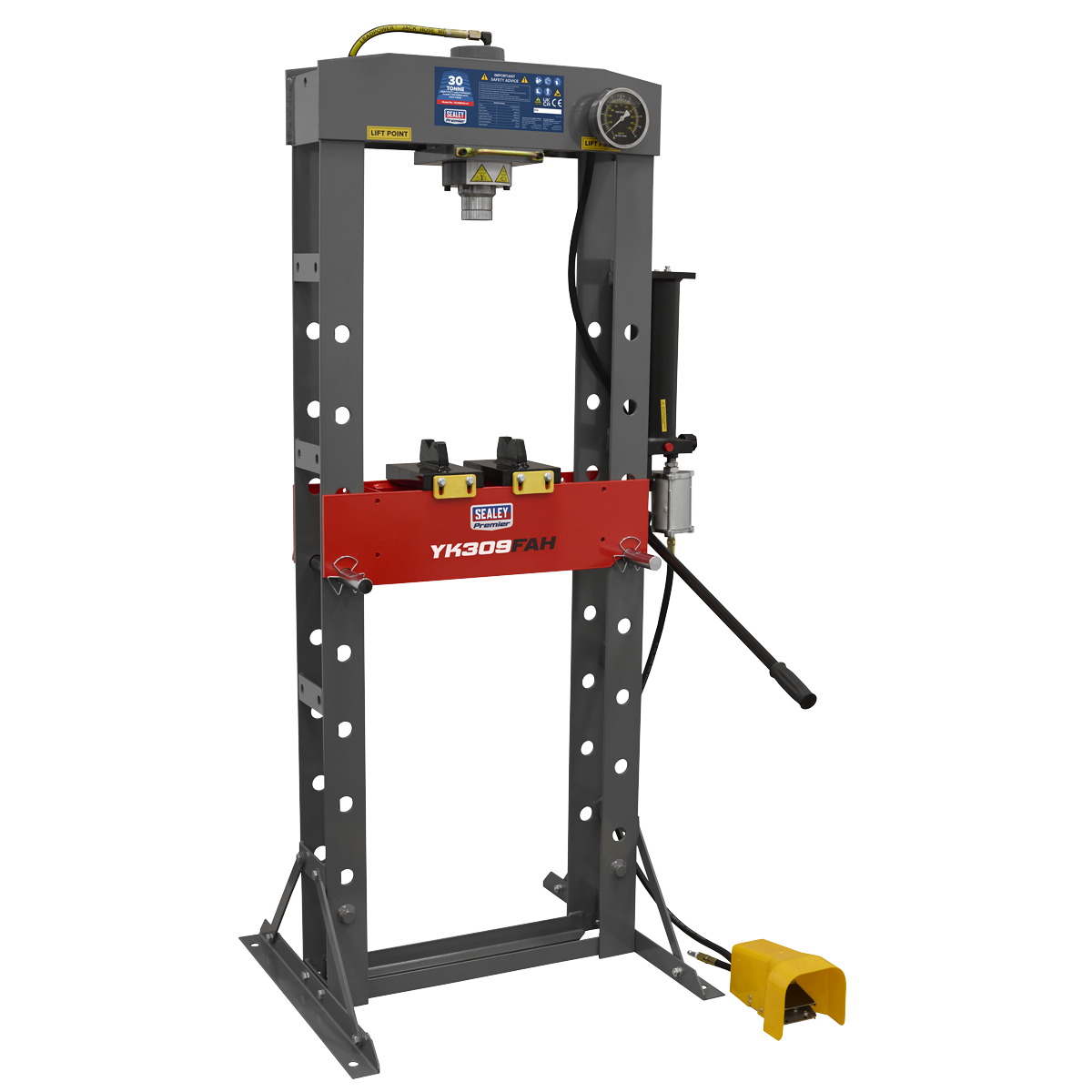

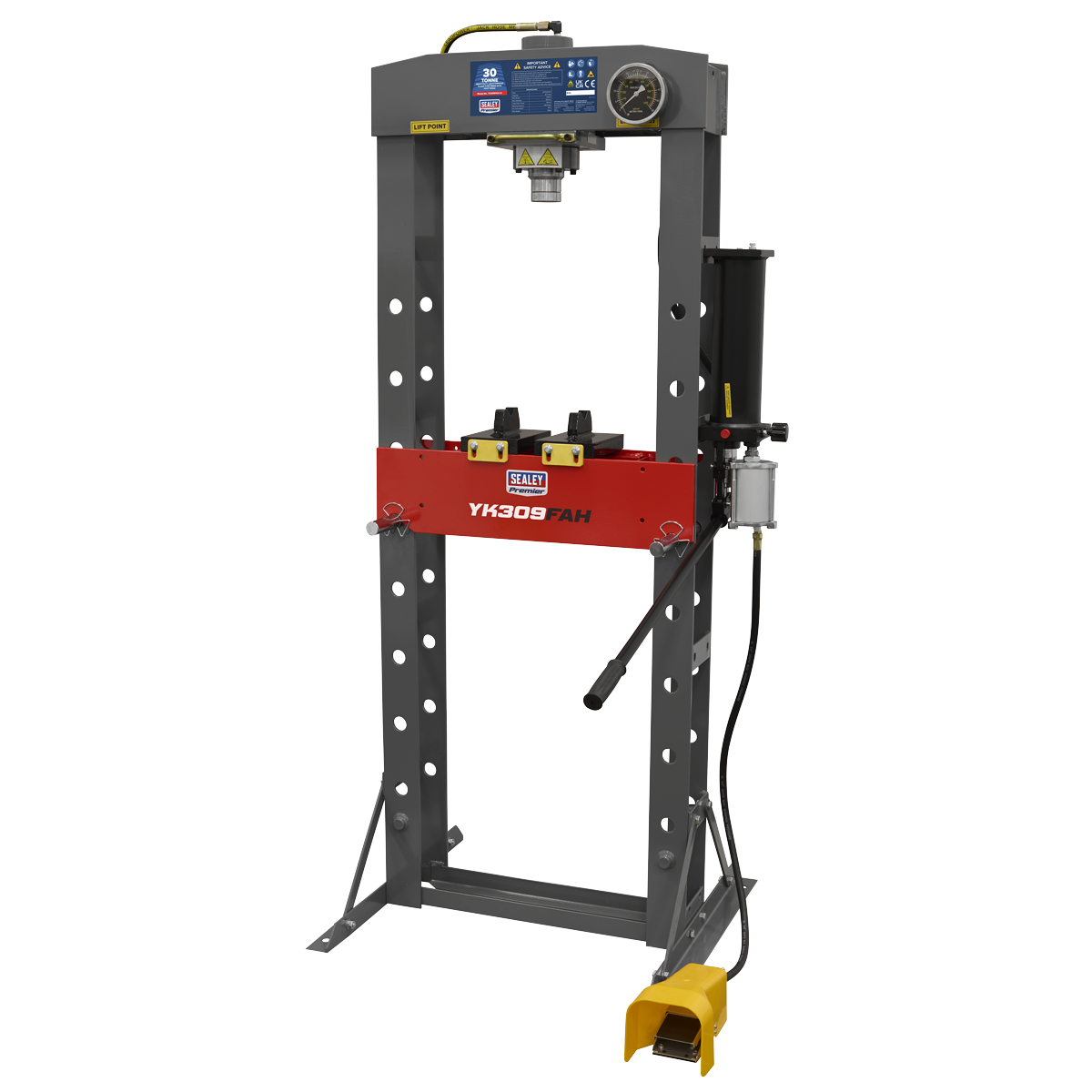

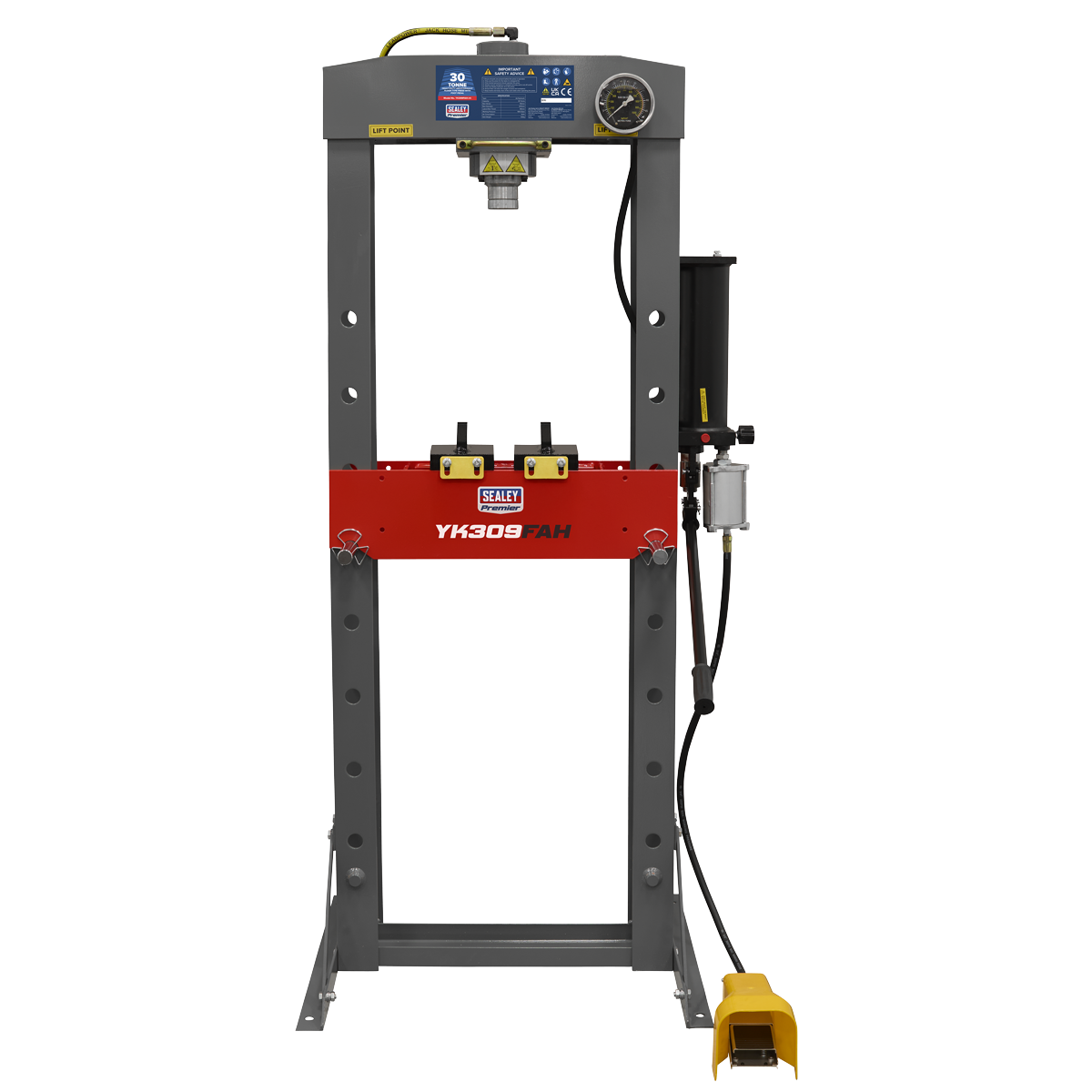

Premier Heavy-Duty Air/Hydraulic Floor Type Press with Foot Pedal 30 Tonne YK309FAH

Name: Premier Heavy-Duty Air/Hydraulic Floor Type Press with Foot Pedal 30 Tonne YK309FAH
SKU: PREMIER-YK309FAH
Price: 1638.65 GBP
Availability: InStock

£1,638.65 GBP

~~£1,739.94 GBP~~ £1,638.65 GBP

Reduced Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Steel frame construction. Side mounted, air motor powering hydraulic pump unit with 2-speed manual operation. Sliding hydraulic ram assembly giving 190mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.

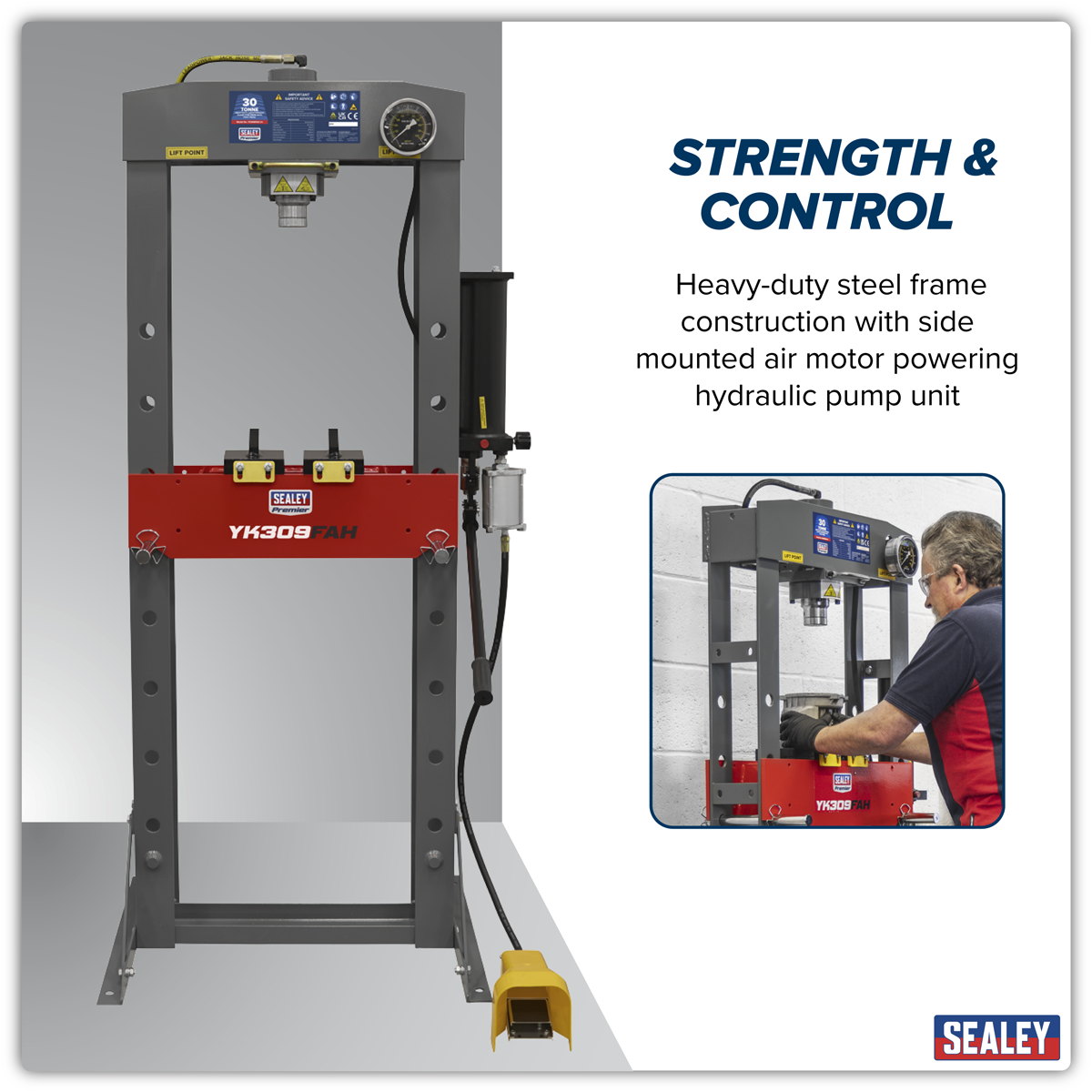

• STRENGTH AND CONTROL - Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.
• 2-SPEED MANUAL OPERATION - Rapid decent and then slow and controlled when the work piece is met.

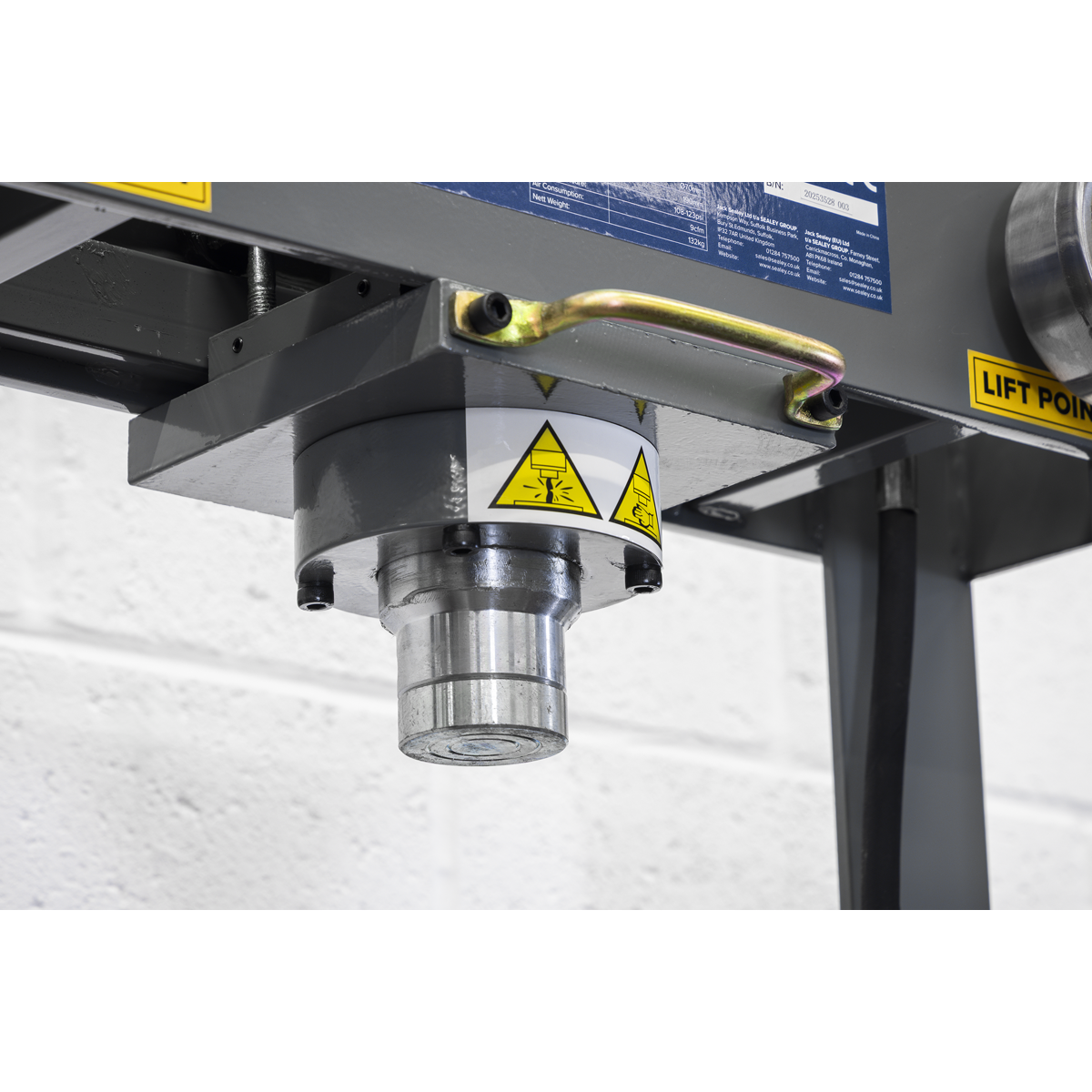

• LATERAL TRAVEL - Sliding hydraulic ram assembly giving 190mm of lateral travel for off-centre pressing applications.

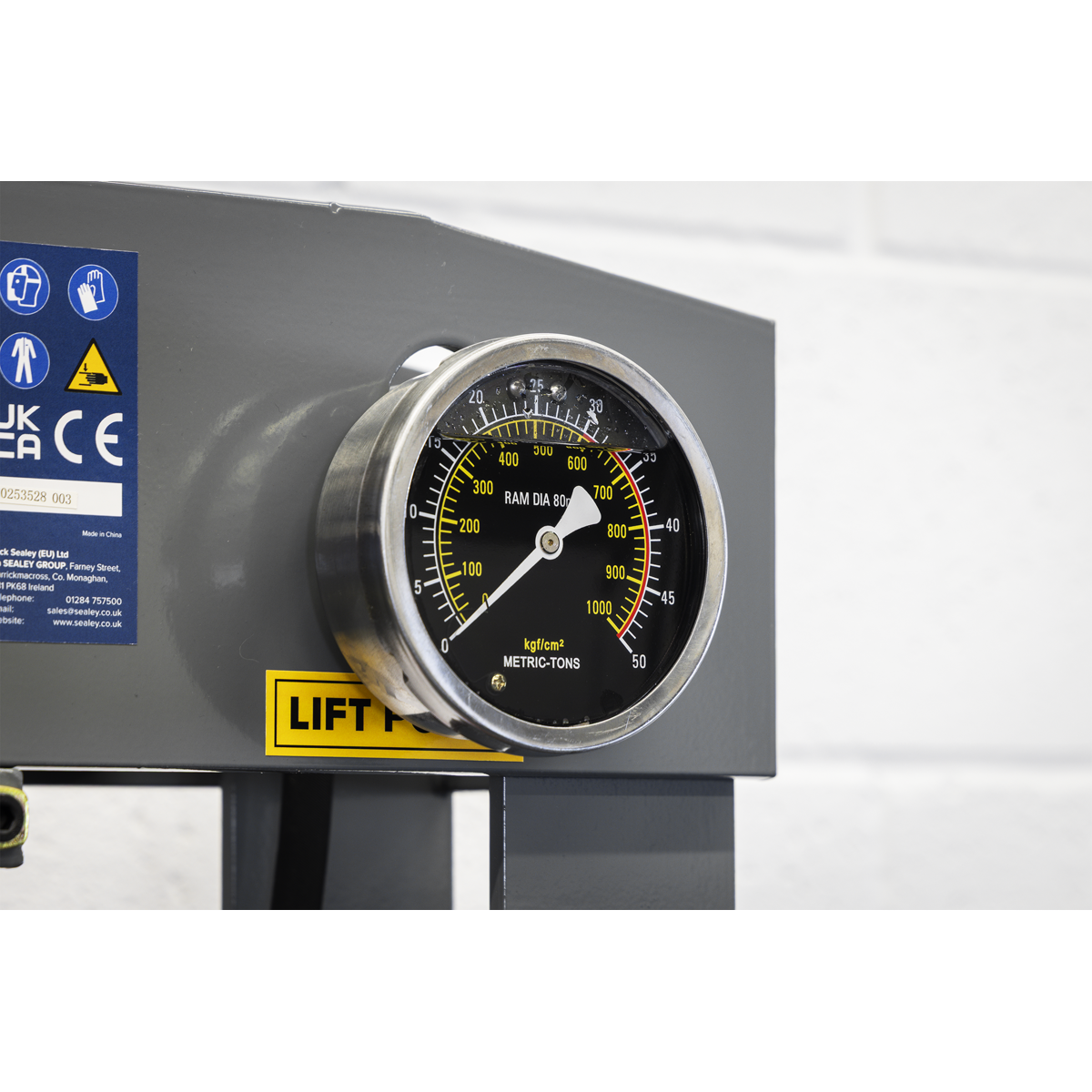

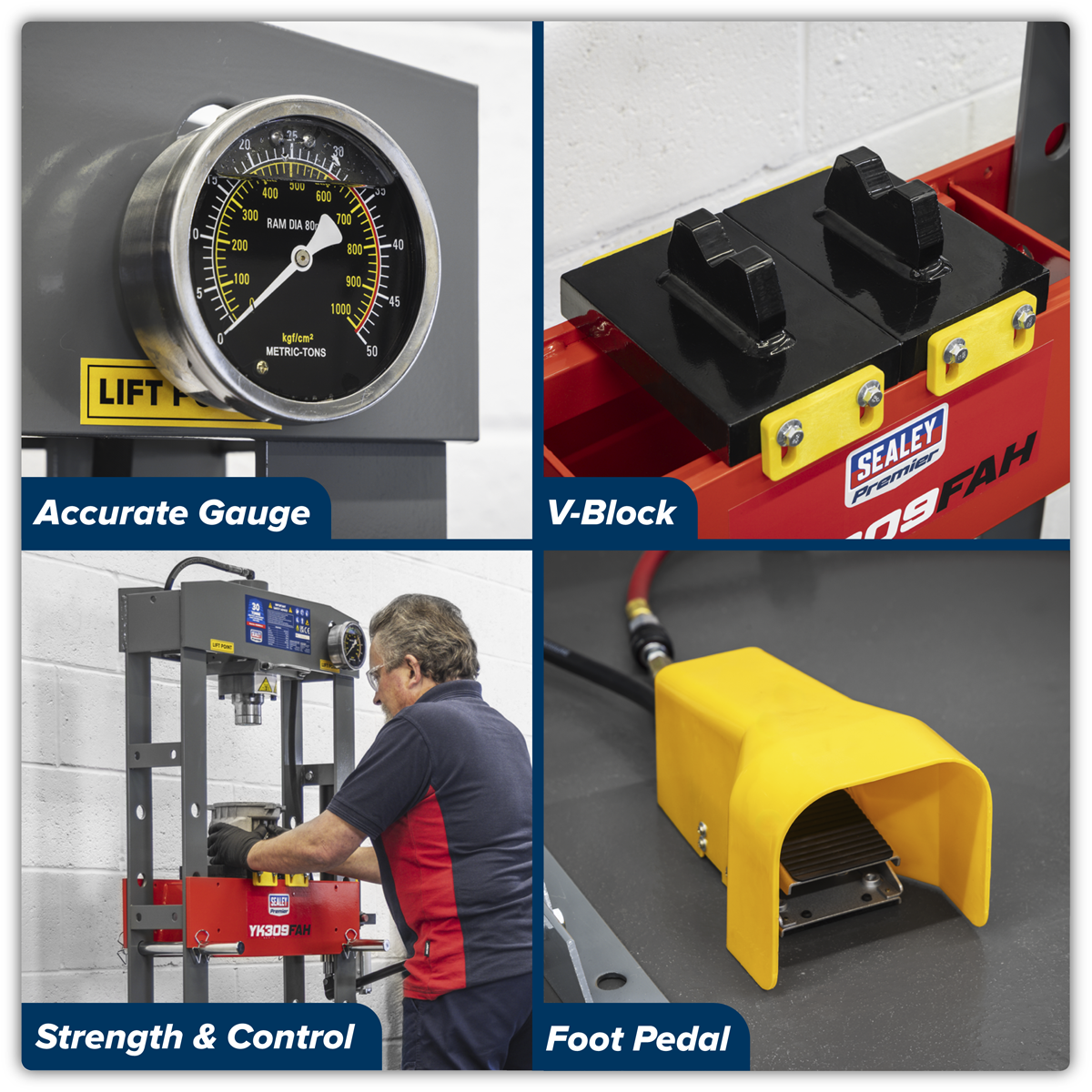

• ACCURATE PRESSING - Fitted with ram pressure gauge.

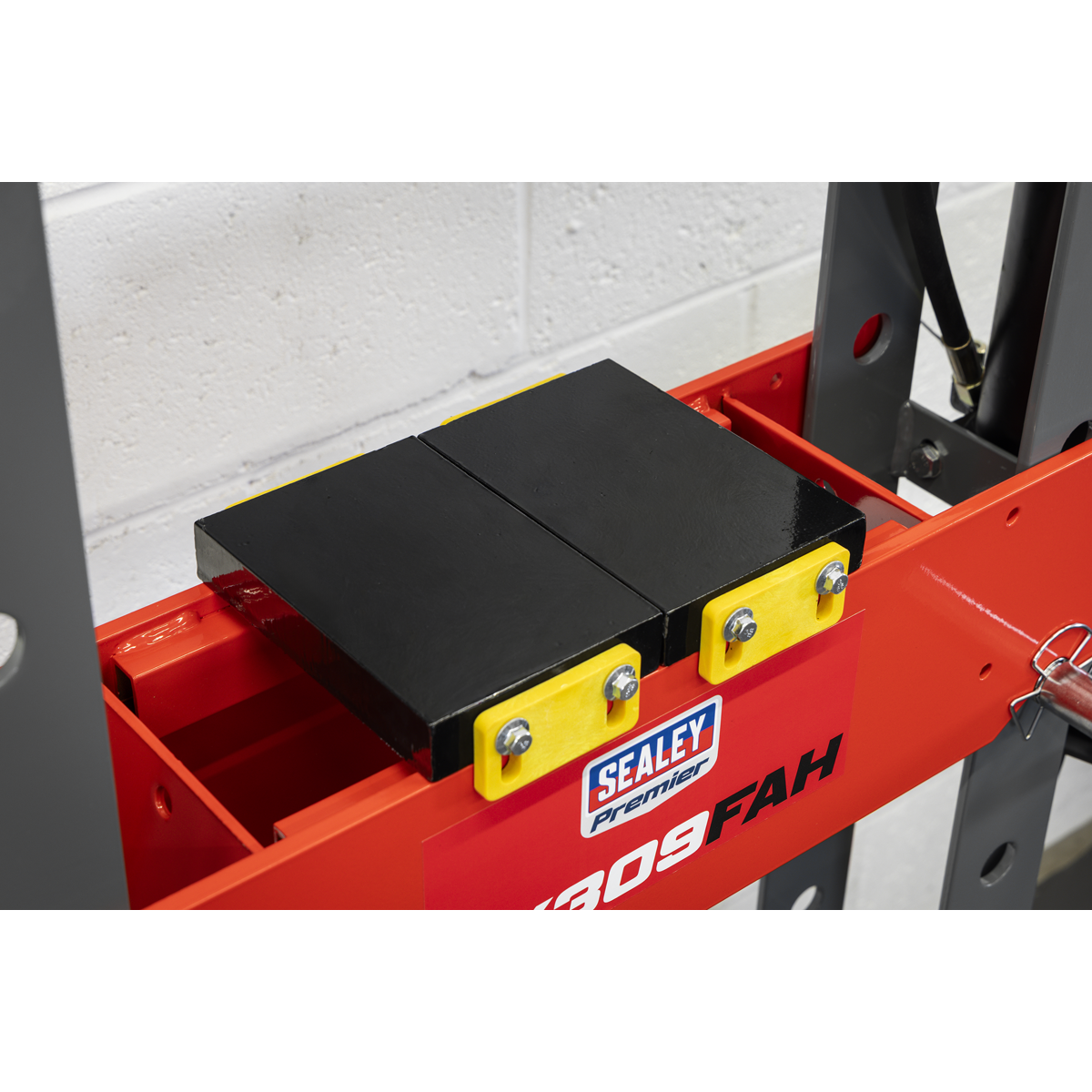

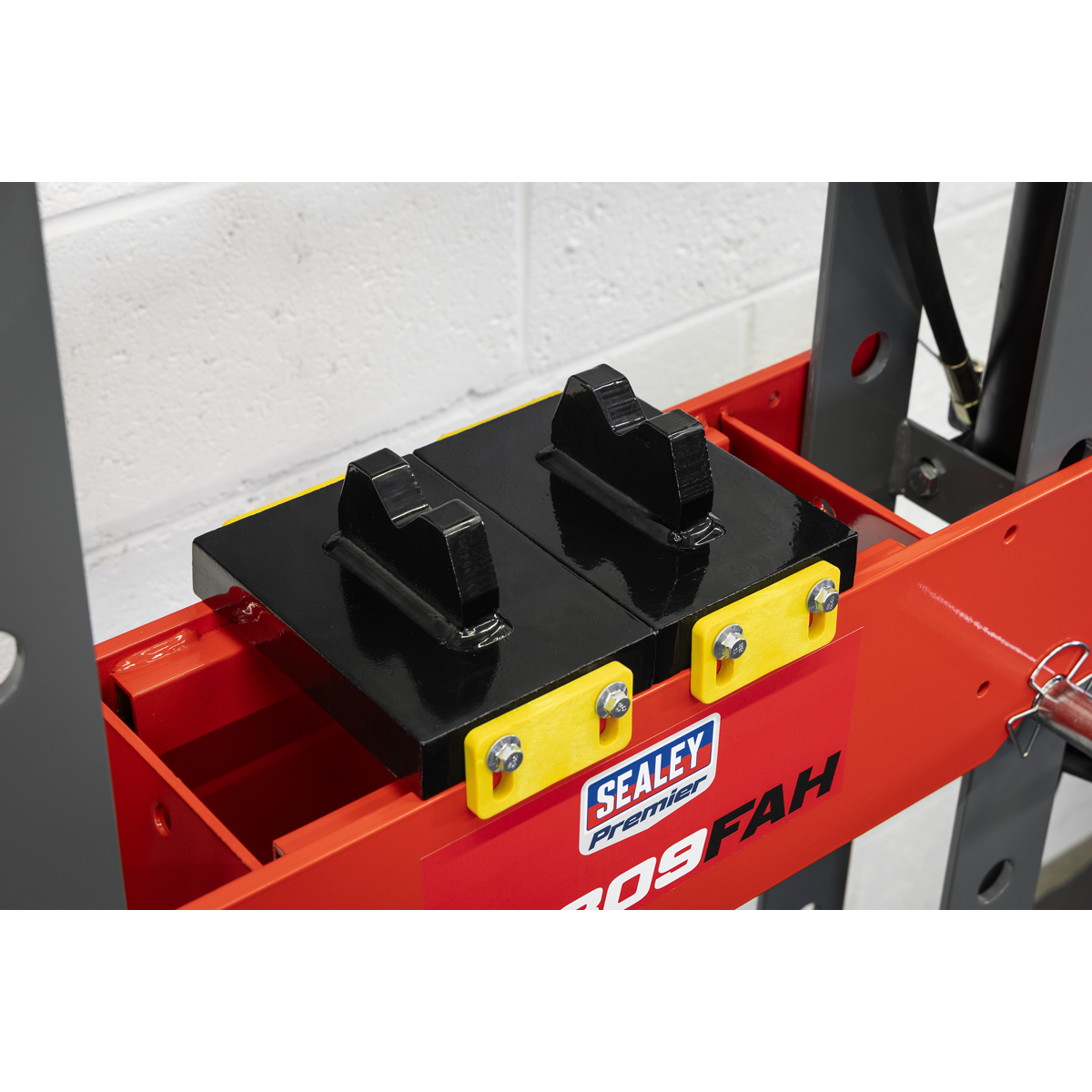

• TABLE ACCESSORIES - Supplied with flat pressing plate/V-blocks.
• 5 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

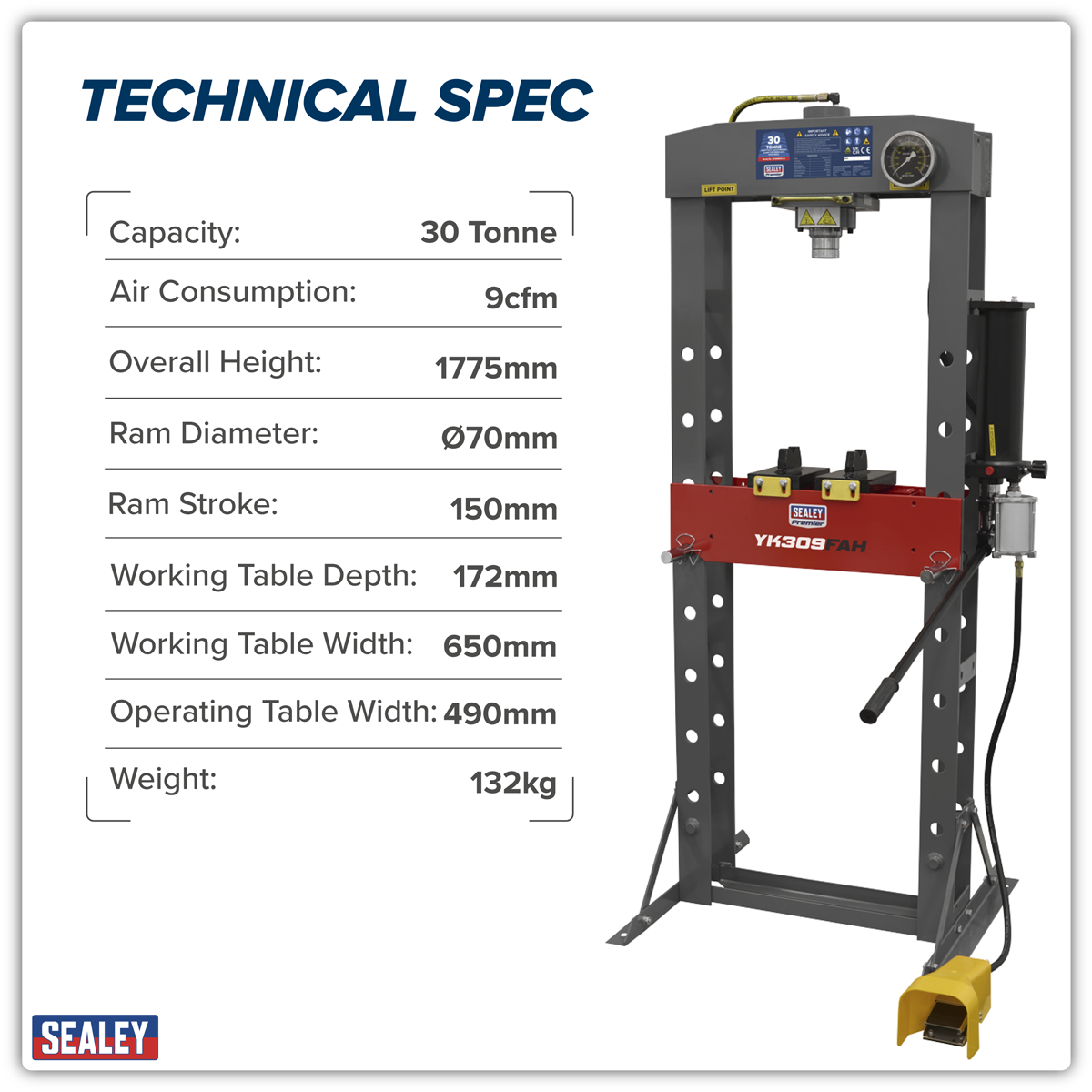

Specifications

Model No	YK309FAH
Air Consumption:	9cfm
Bench or Floor Mounting:	Floor
Brand:	Premier
Capacity:	30 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	190mm
Maximum Height - Ram to Table:	1035mm
Minimum Height - Ram to Table:	55mm
Nett Weight:	132kg
Operating Table Width:	490mm
Optional Accessories:	YKSG20 - Safety Guard, YKPP8 - Press Pin Set
Overall Height:	1775mm
Ram Diameter:	Ø70mm
Ram Stroke:	150mm
Table Aperture:	152mm
Type:	Air/Hydraulic
Working Table Depth:	172mm
Working Table Width:	650mm
