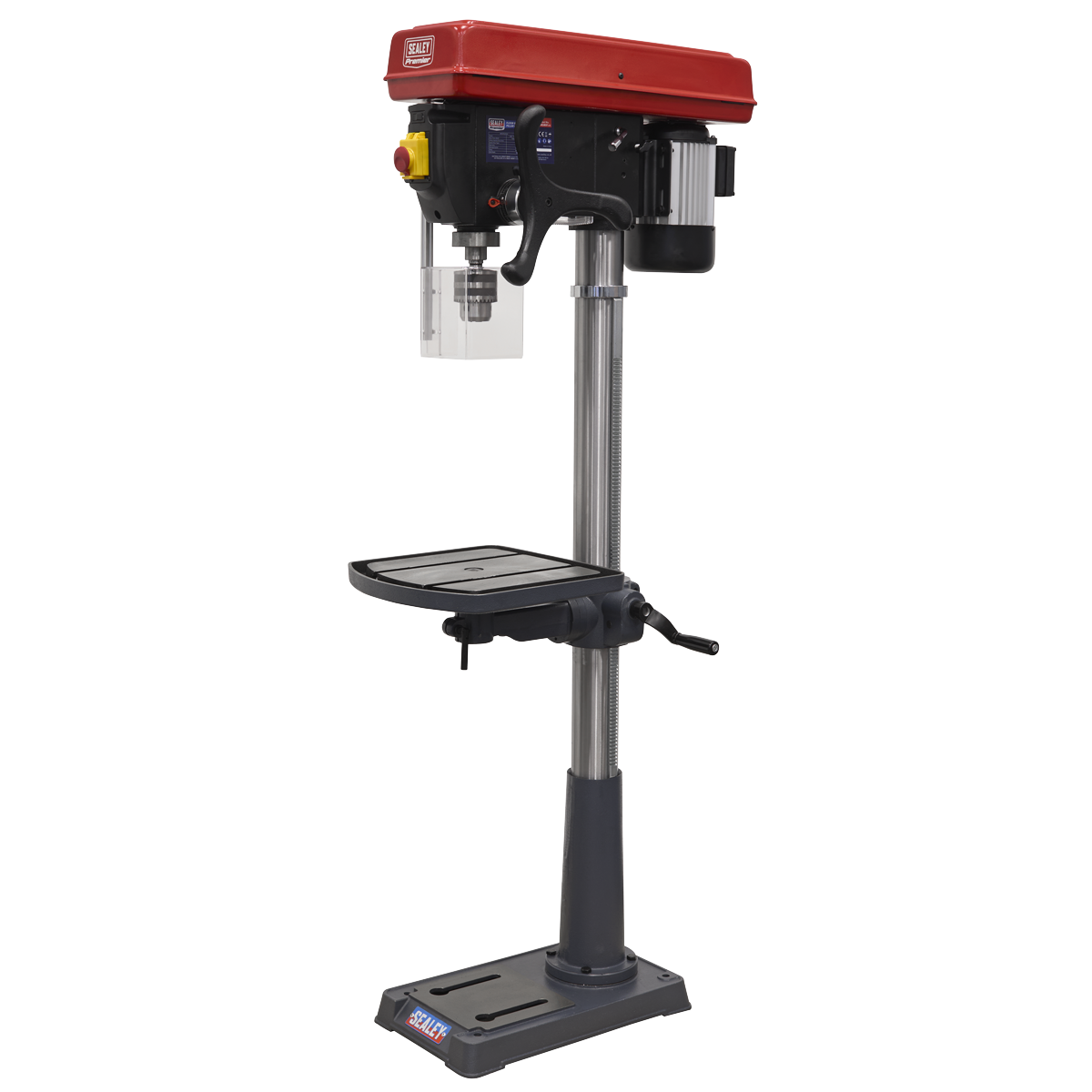

Premier Premier Floor Standing Pillar Drill 16-Speed 750W/230V PDM240F
Premier Premier Floor Standing Pillar Drill 16-Speed 750W/230V PDM240F
Regular price
£729.02 GBP
Regular price
£863.94 GBP
Sale price
£729.02 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
One of a comprehensive range of Premier floor standing pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included). Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.
• One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
• Features heavy-duty aluminium-bodied motor for long and reliable performance.

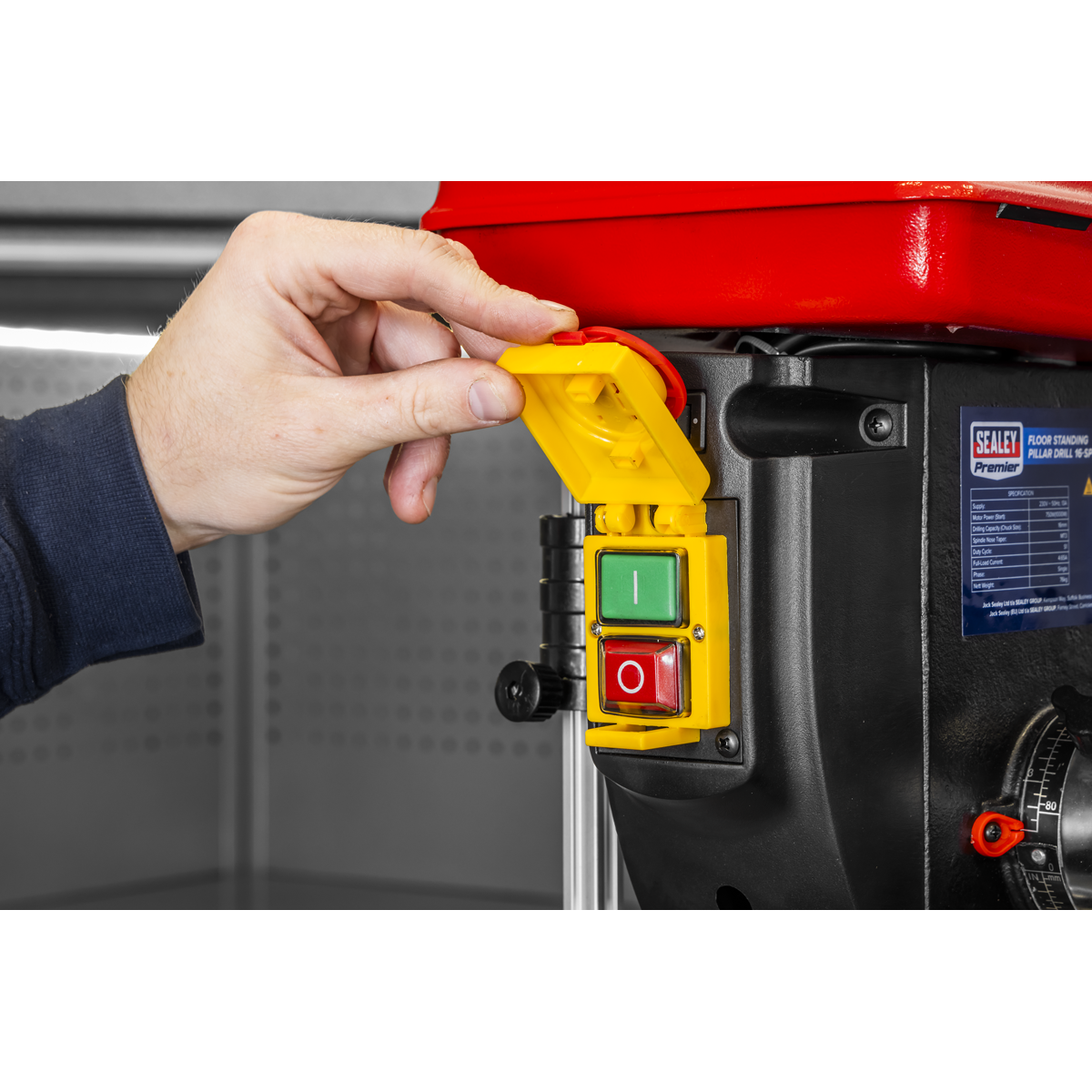

• No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included).
• Supplied with an electrically inter-locked chuck guard.

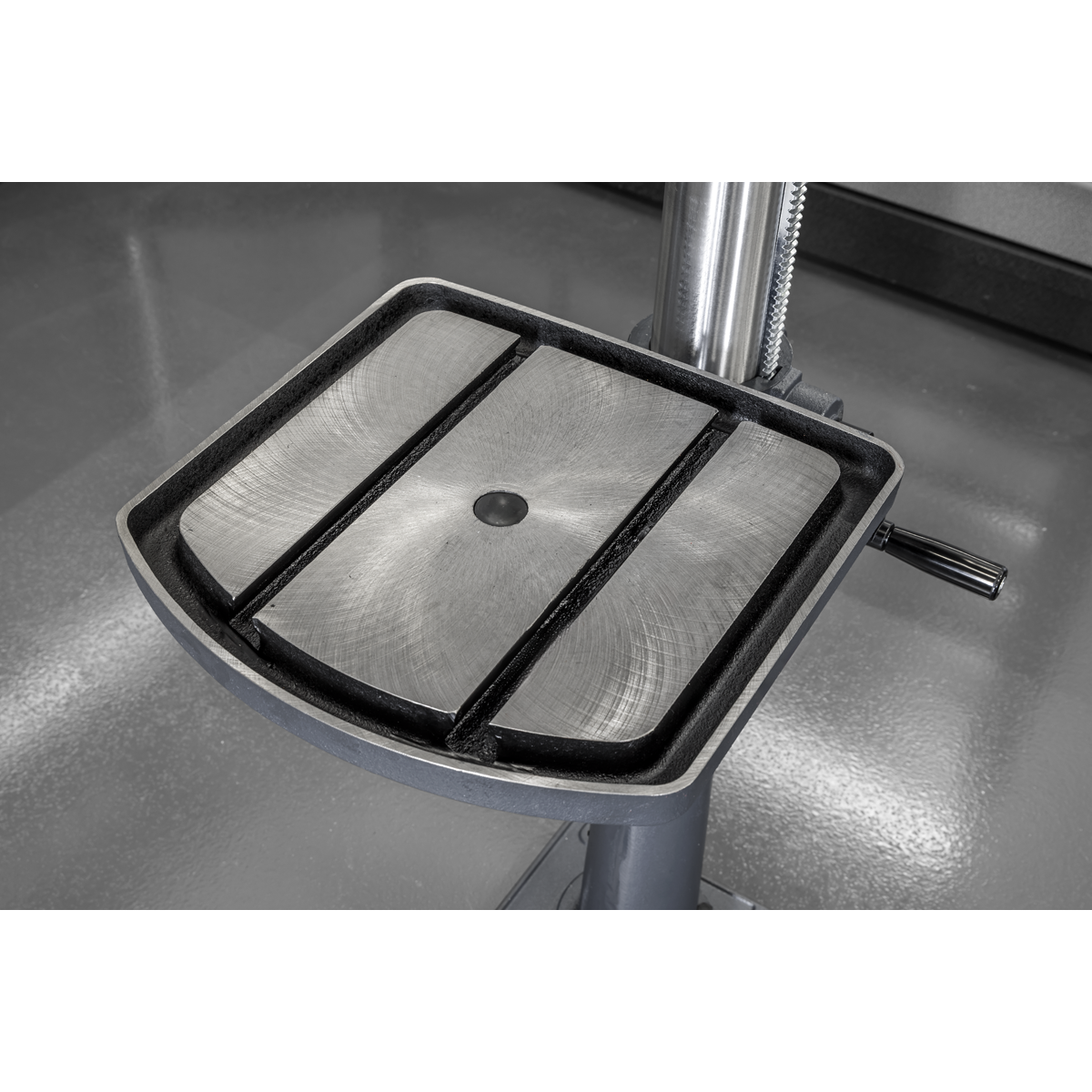

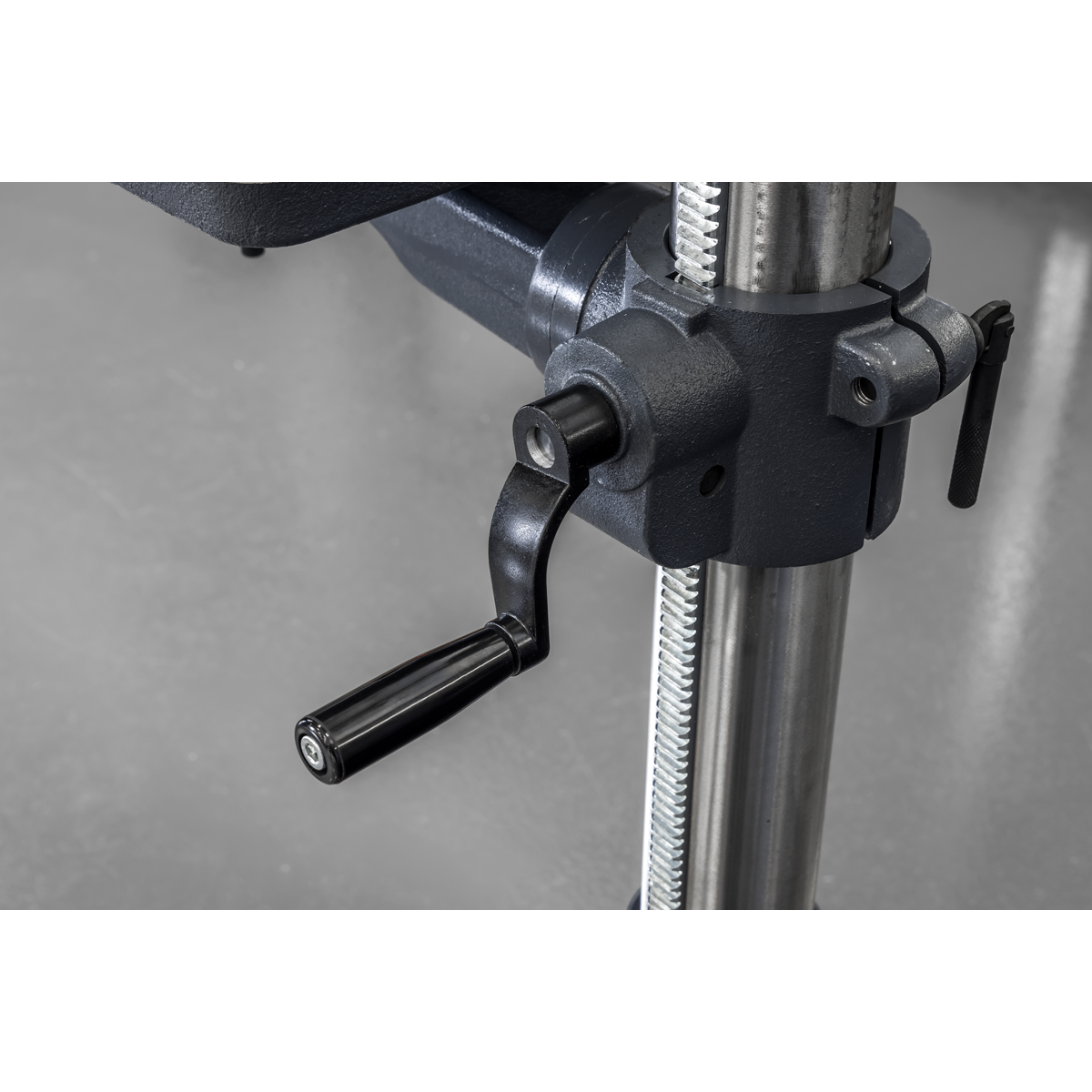

• Large sized square table fitted with precision rack and pinion height adjustment.

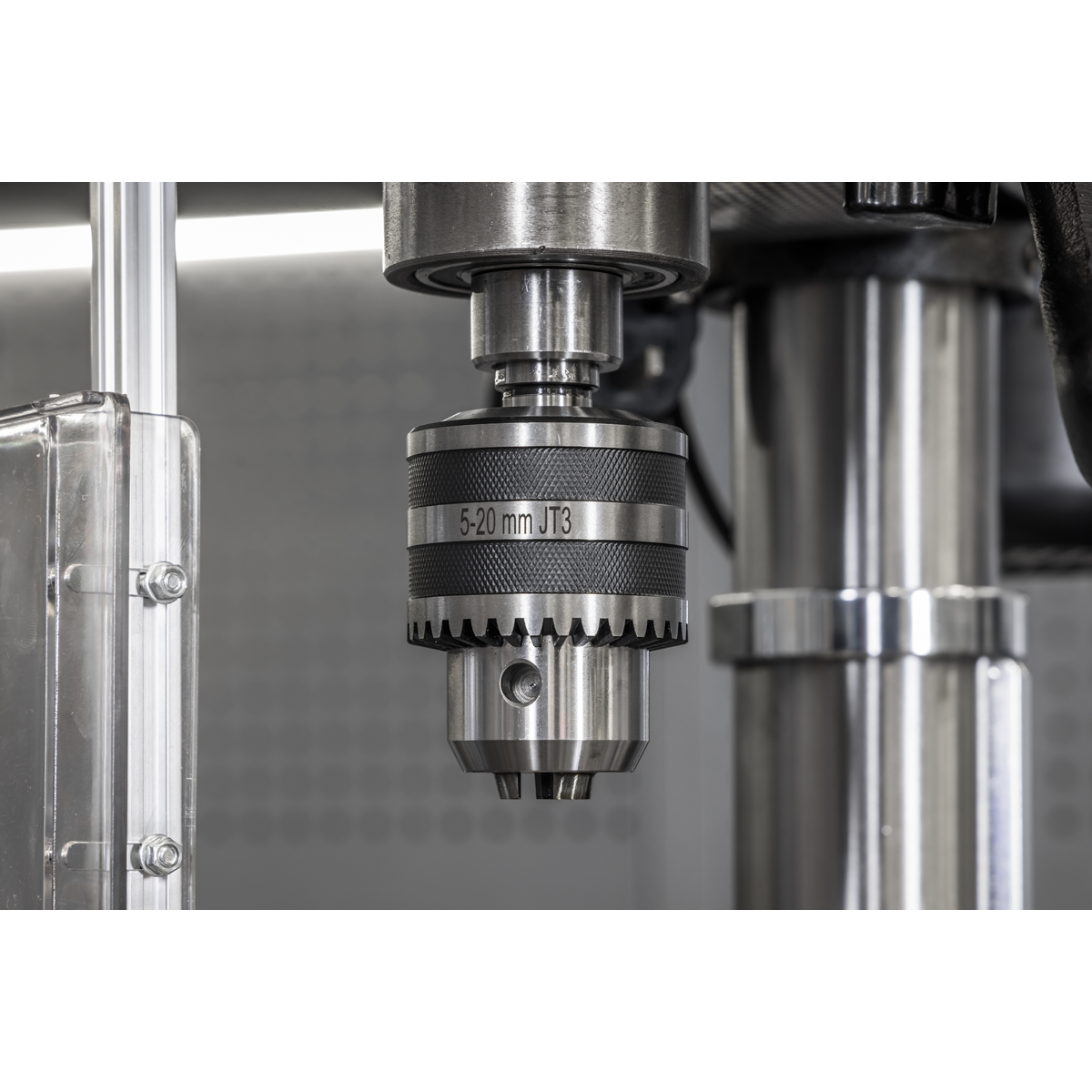

• 20mm(3/4") Capacity chuck, MT3.
• Height: 1635mm.
• Spindle Centre to Column: 216mm.
• Motor Power: 750W.
• Column Diameter: Ø80mm.

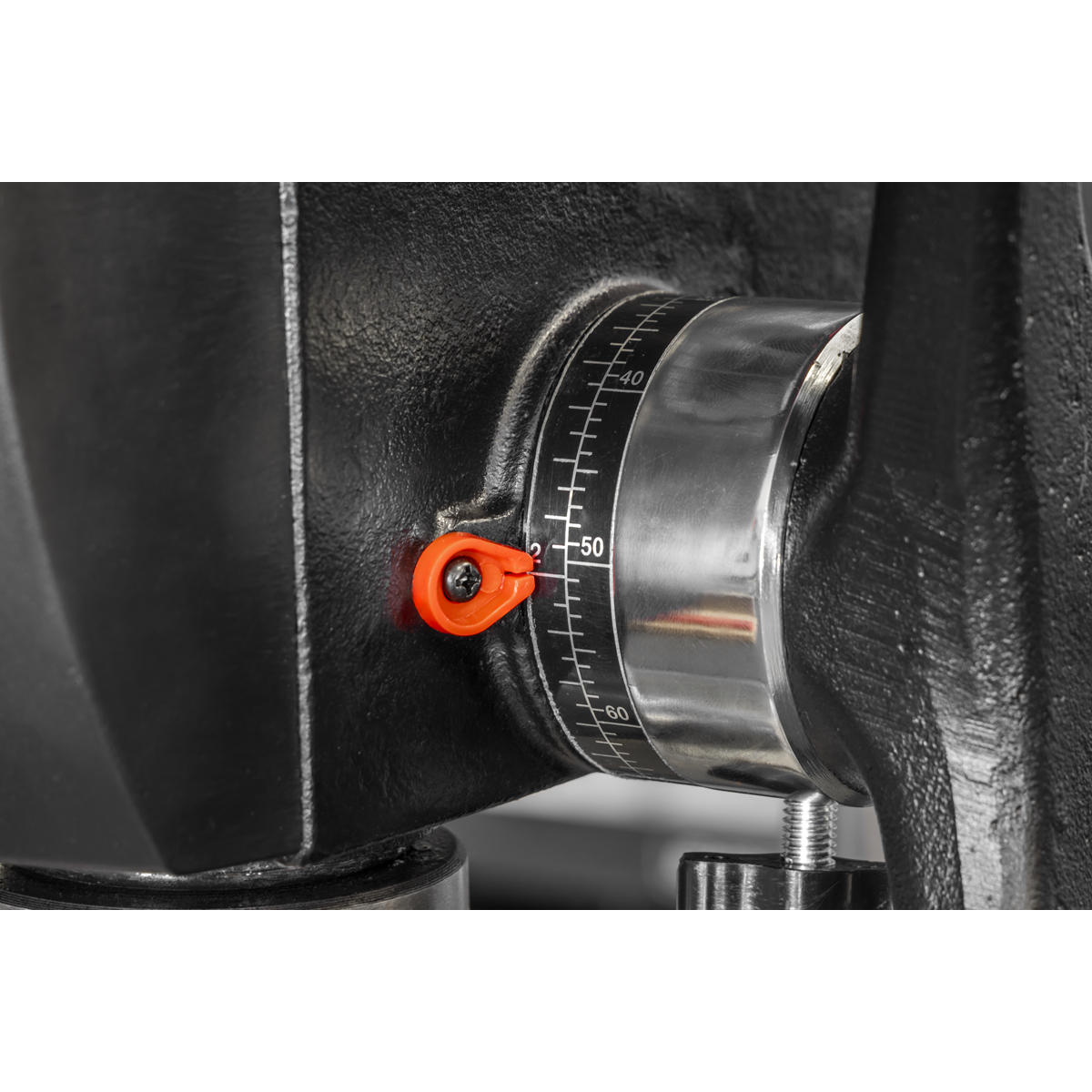

• Spindle Travel: 80mm.
• Weight: 73kg.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• 3 Year guarantee*.
• One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
• Features heavy-duty aluminium-bodied motor for long and reliable performance.
• No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
• Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included).
• Supplied with an electrically inter-locked chuck guard.
• Large sized square table fitted with precision rack and pinion height adjustment.
• 20mm(3/4") Capacity chuck, MT3.
• Height: 1635mm.
• Spindle Centre to Column: 216mm.
• Motor Power: 750W.
• Column Diameter: Ø80mm.
• Spindle Travel: 80mm.
• Weight: 73kg.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• 3 Year guarantee*.
Specifications
Model No | PDM240F |

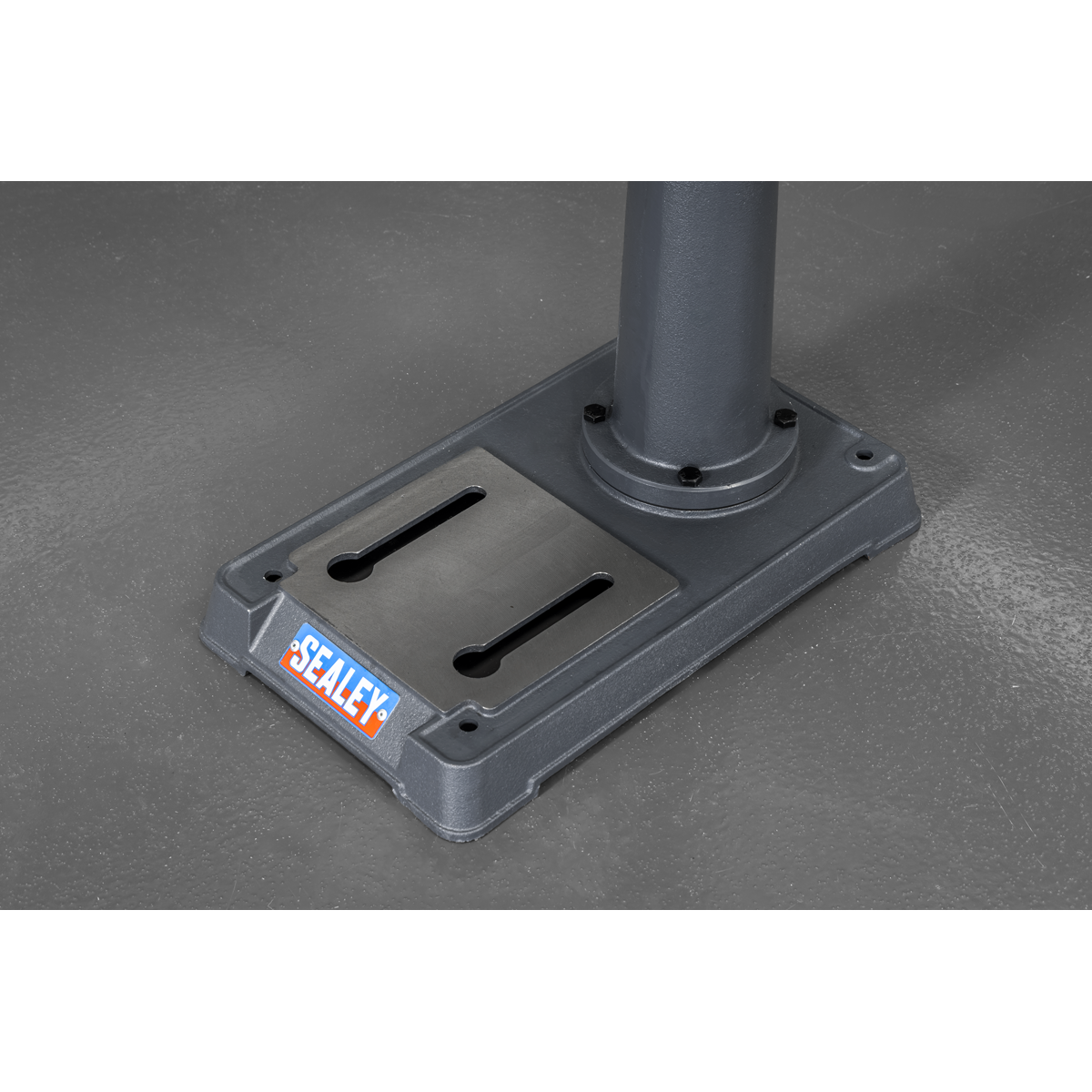

Base Size: | 495 x 290mm |
Brand: | Premier |
Collar Diameter: | Ø75mm |
Column Diameter: | Ø80mm |
Drilling Capacity (Chuck Size): | 20mm |
Integral Work Light: | Yes |
Maximum Distance Spindle to Base: | 1230mm |
Maximum Distance Spindle to Table: | 720mm |
Motor Power (Start): | 750W(1000W) |
Nett Weight: | 76kg |
Number of Speeds: | 16 |
Optional Accessories: | PDM/KC - Keyless Pillar Drill Chuck 16mm |
Overall Height: | 1635mm |
Speed Range: | 160-3000rpm |
Spindle Centre to Column: | 216mm |
Spindle Nose Taper: | MT3 |
Spindle Travel: | 80mm |
Supply: | 230V |
Swing: | 512mm |
Working Base Surface Size: | 205 x 200mm |
Working Table Surface Size: | 356 x 356mm |
