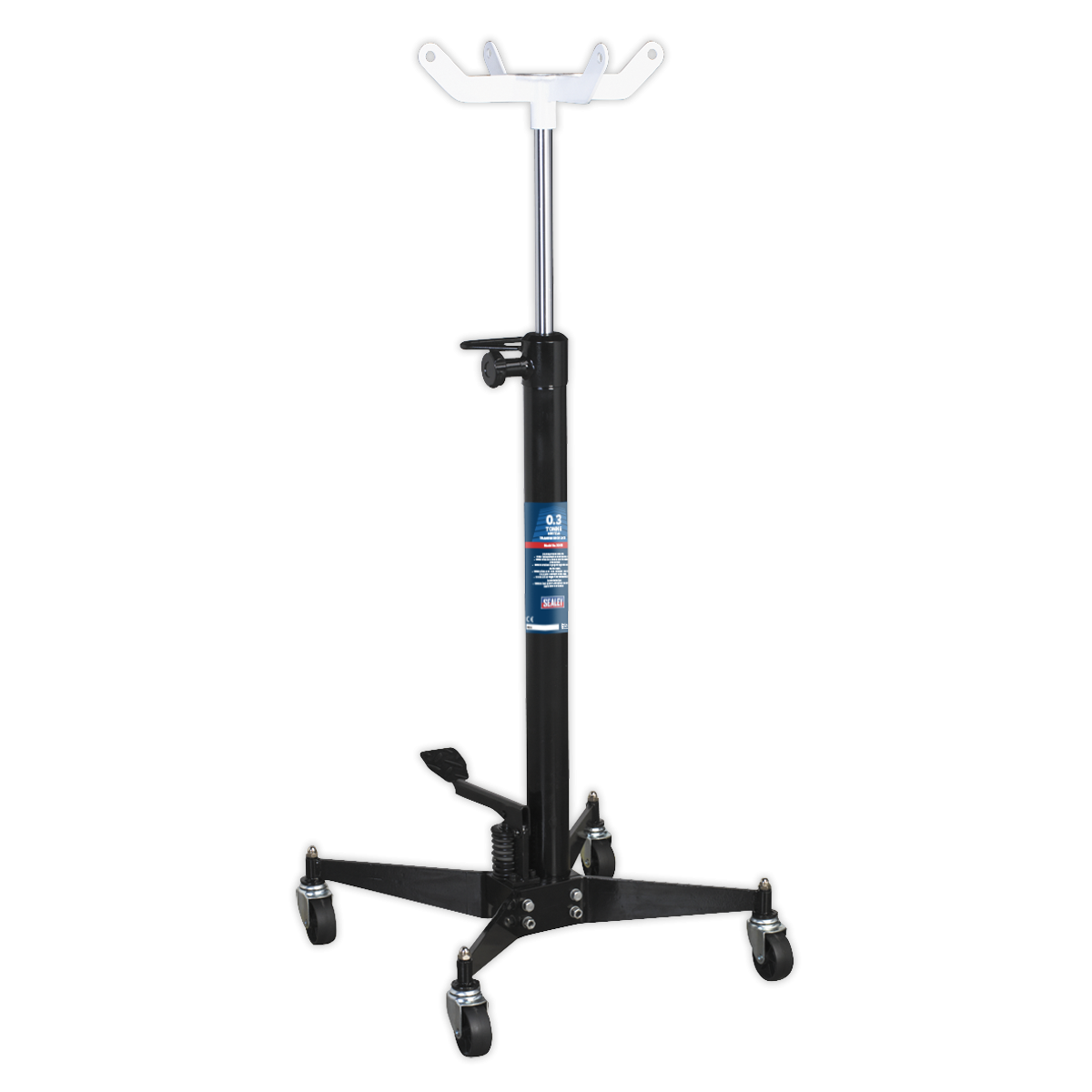

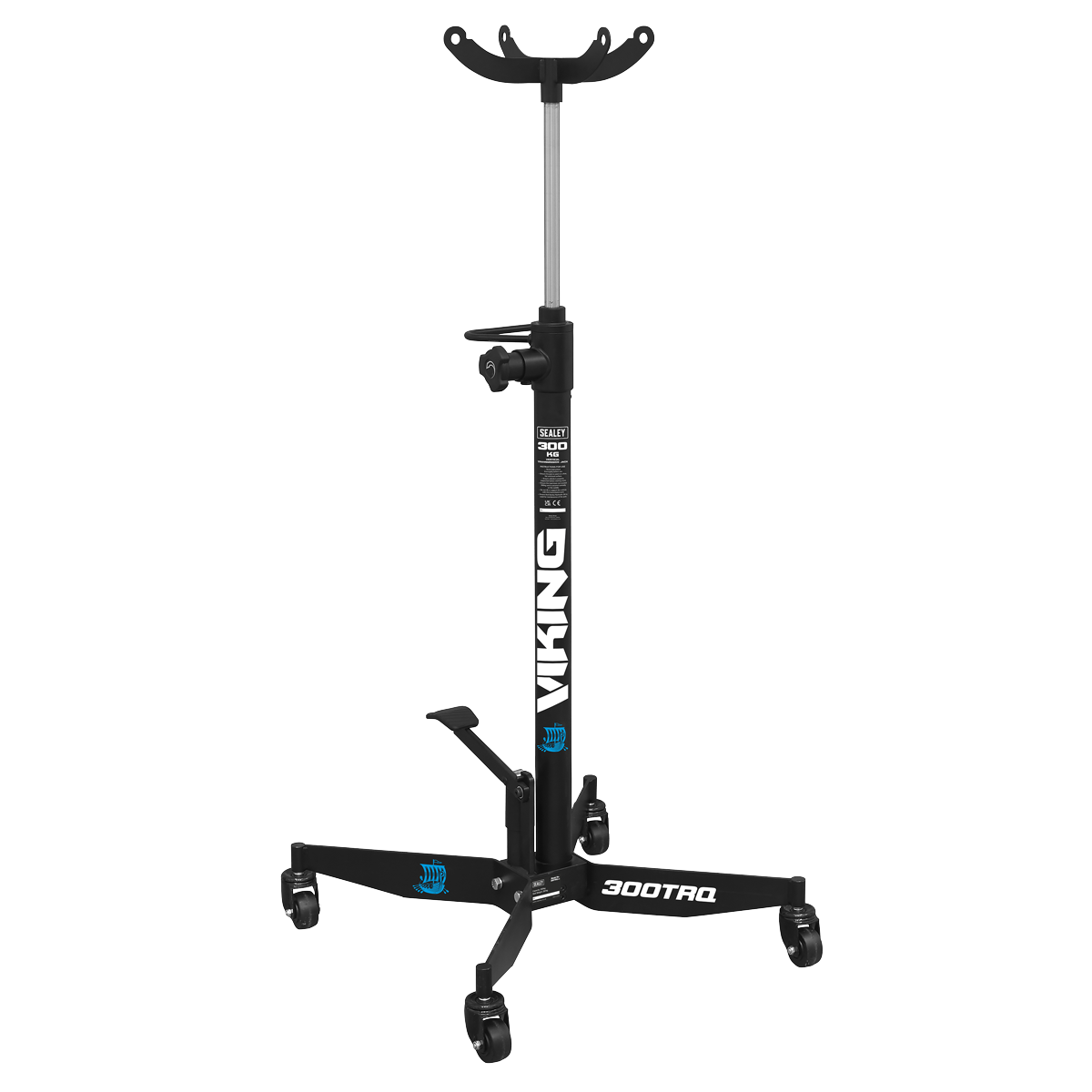

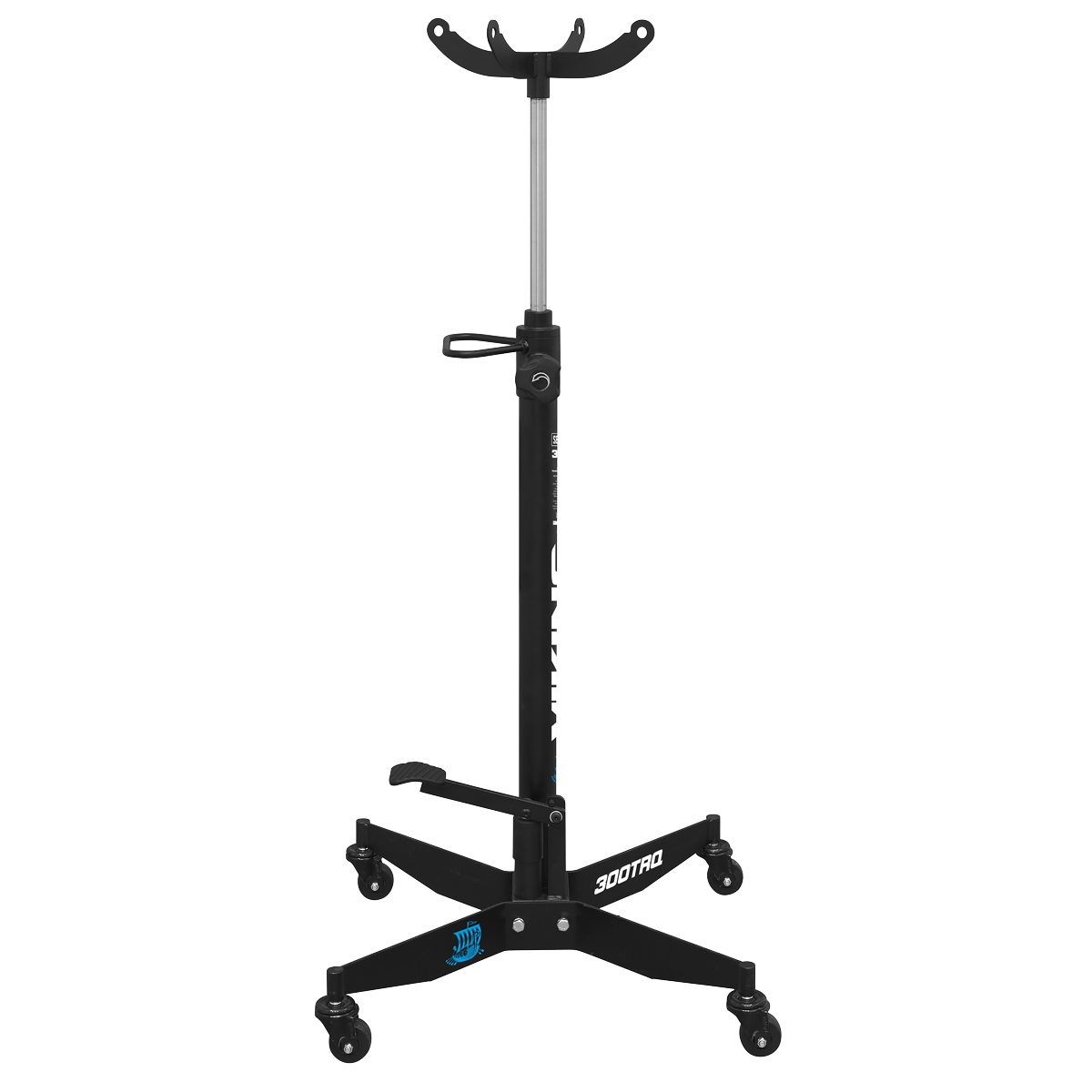

Premier 300TRQ Vertical Quick Lift Transmission Jack 300kg

This transmission jack features Quick Lift to reduce the time and effort needed to get saddle to gearbox. Single foot pedal operation keeps hands-free during lifting process. Spring loaded dead man's safety release control reduces the risk of inadvertent lowering. 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load. Saddle is reversible allowing a jack pad to be fitted to support items other than transmissions. Castors and side handle make the unit easily manoeuvrable. Hydraulic unit larger than the economy models for improved performance and durability. Can be fitted with optional Adjustable Gearbox Support - Model No. ADT3.

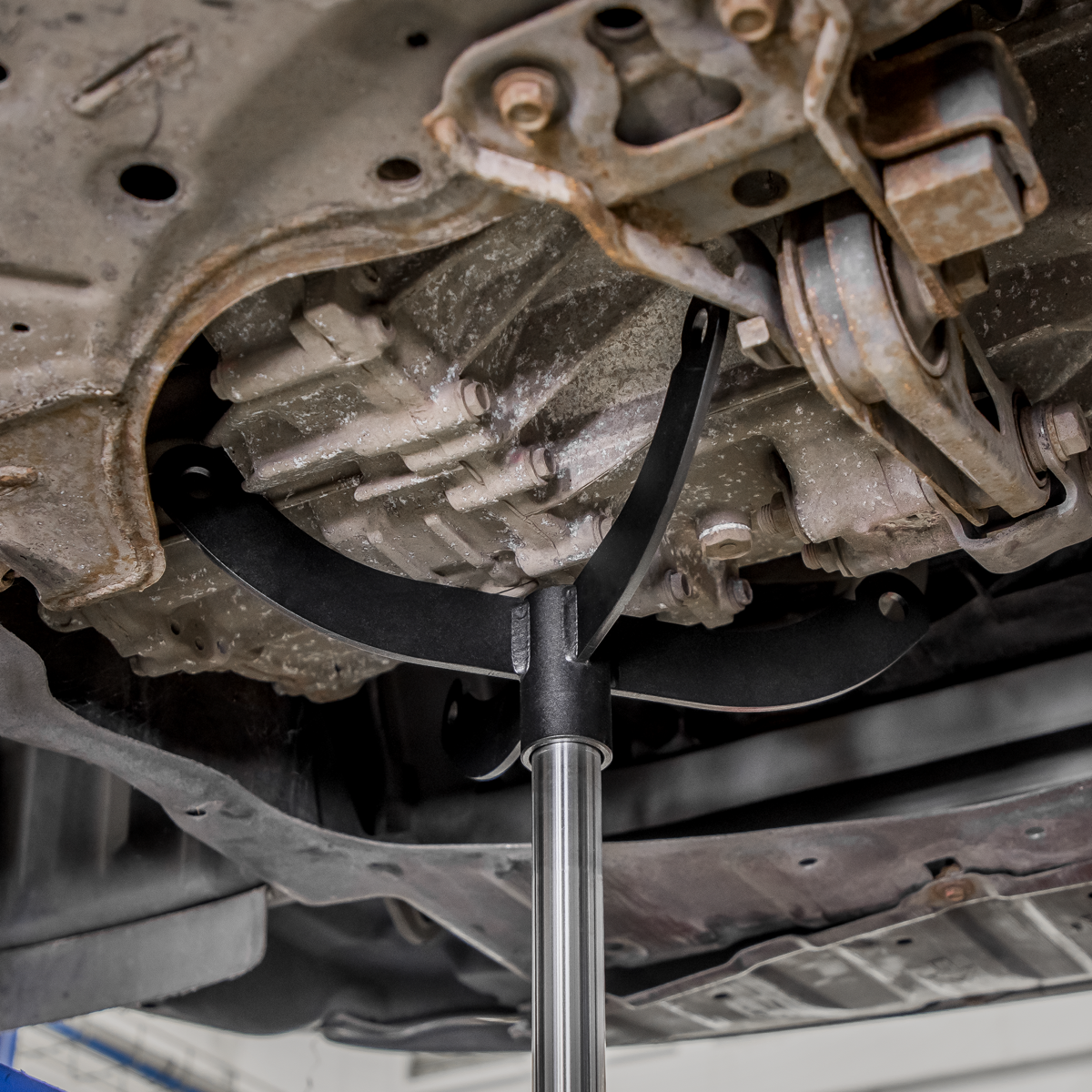

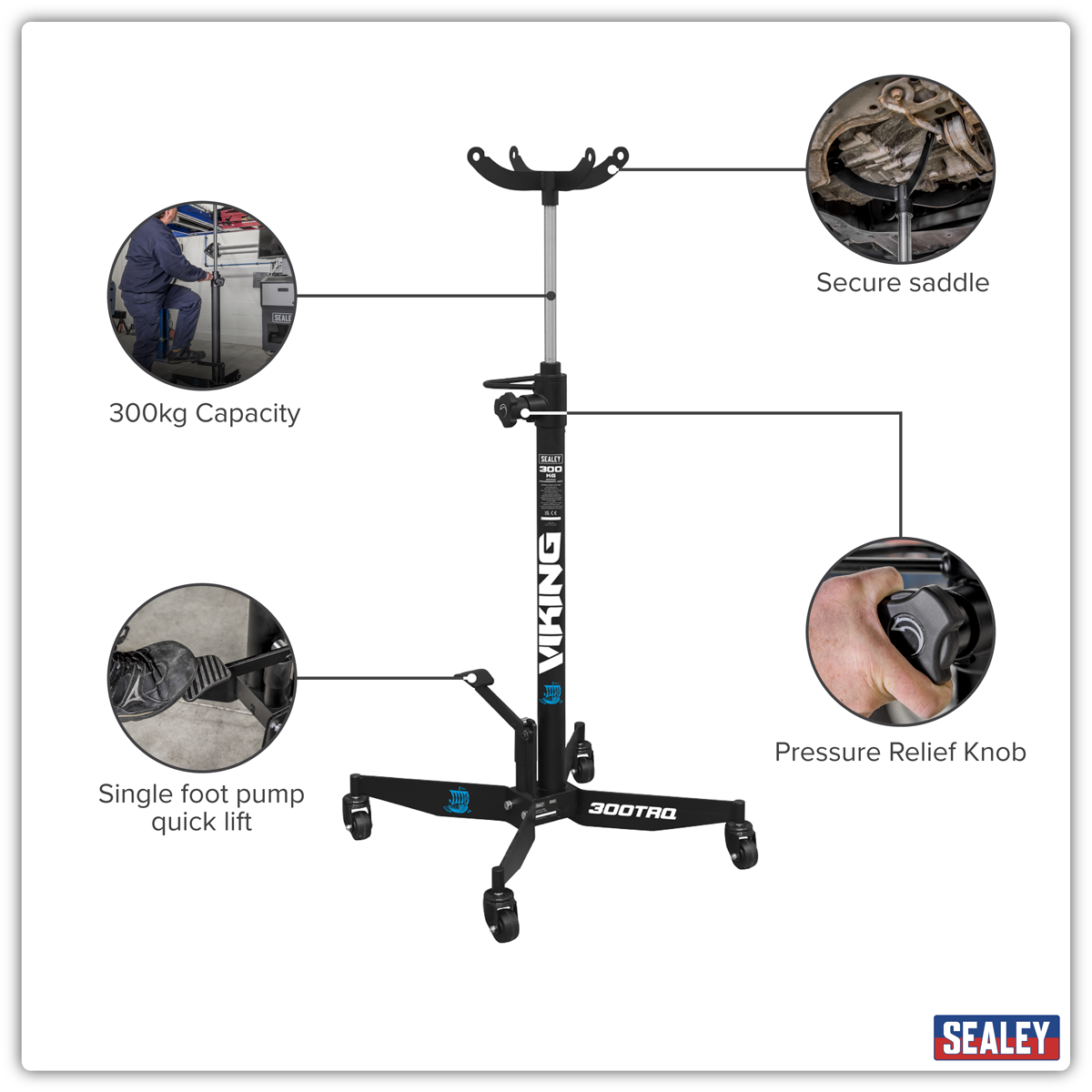

• Quick Lift feature to reduce the time and effort needed to get saddle to gearbox.
• Only a maximum of 20 pumps needed to reach full height.

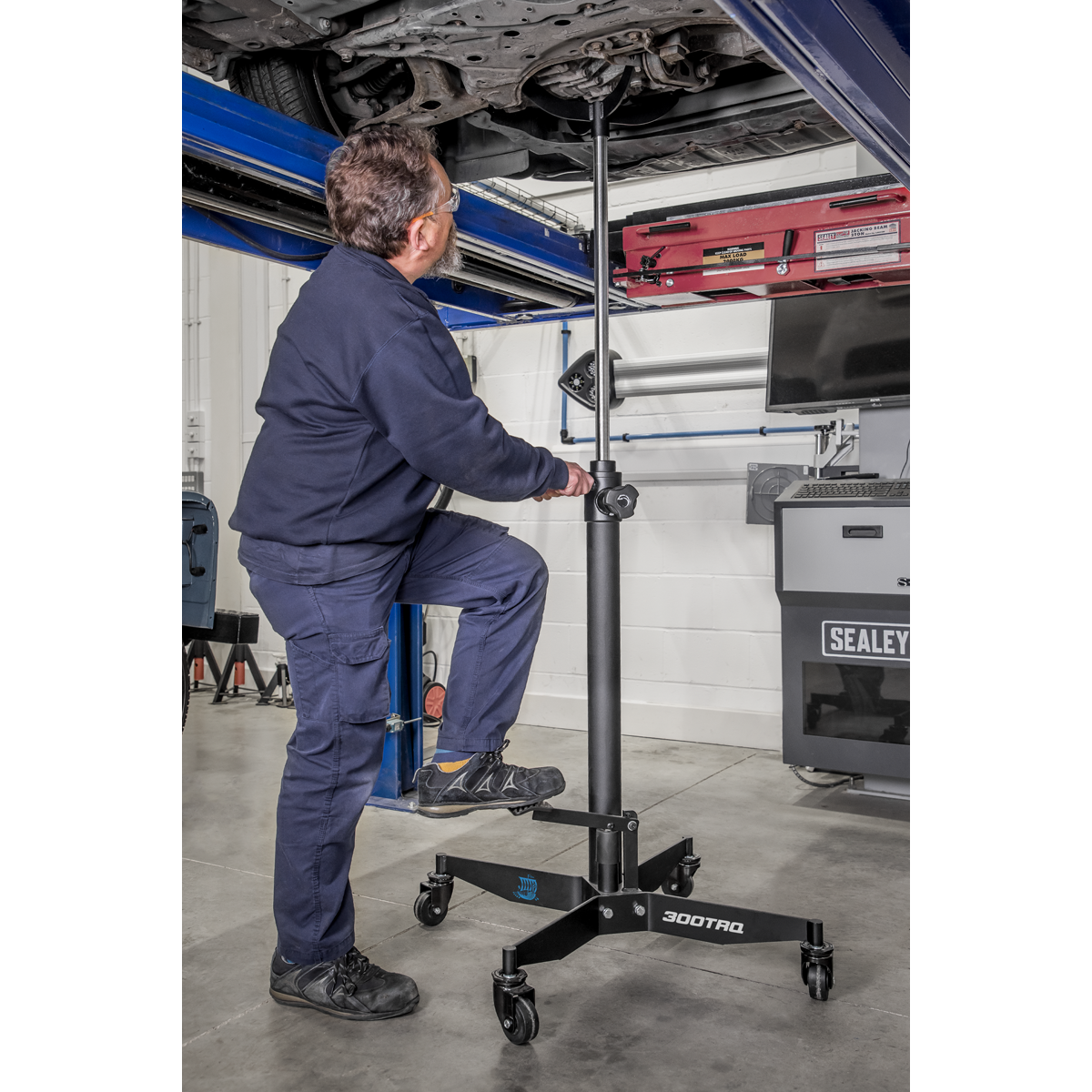

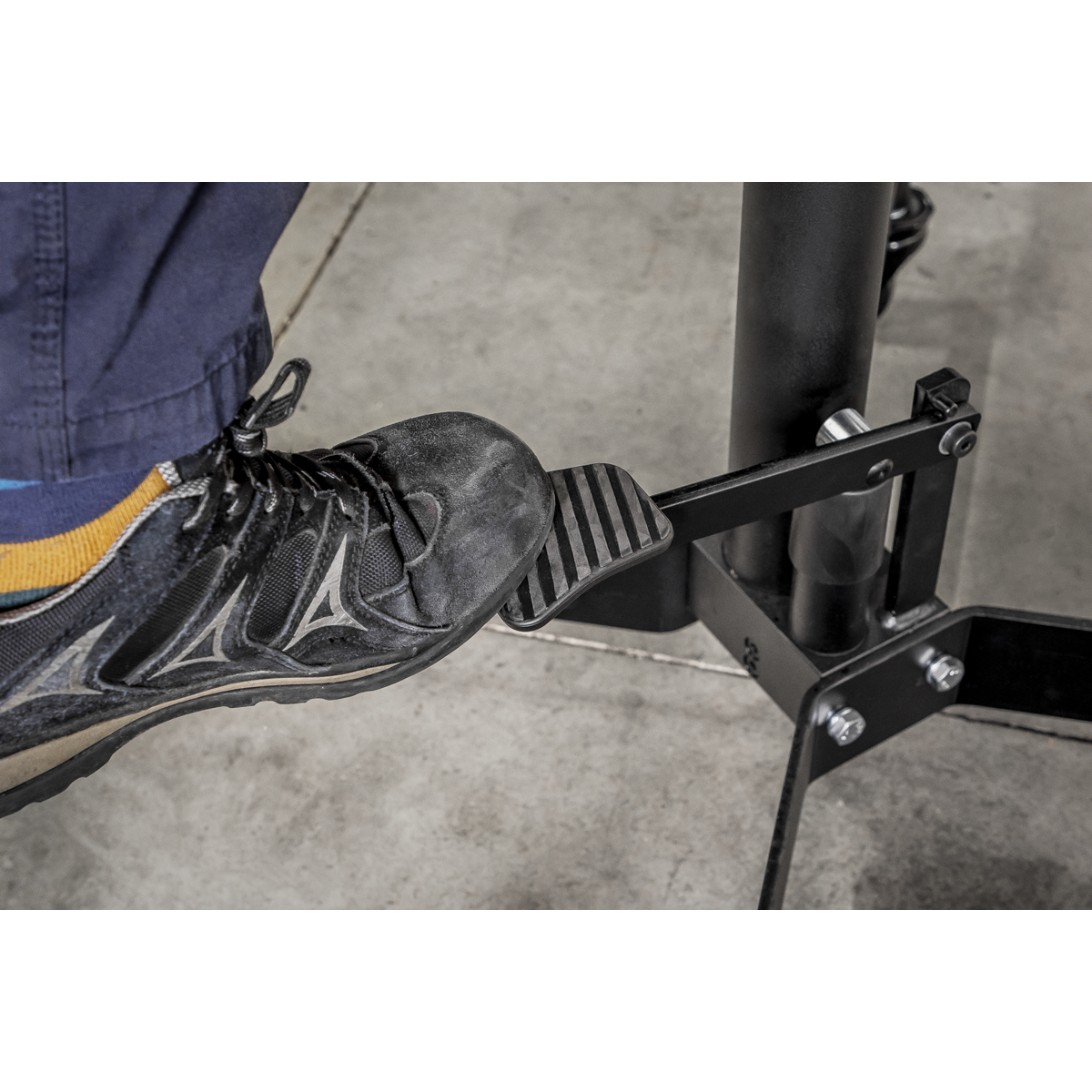

• Single foot pedal operation keeps hands-free during lifting process.

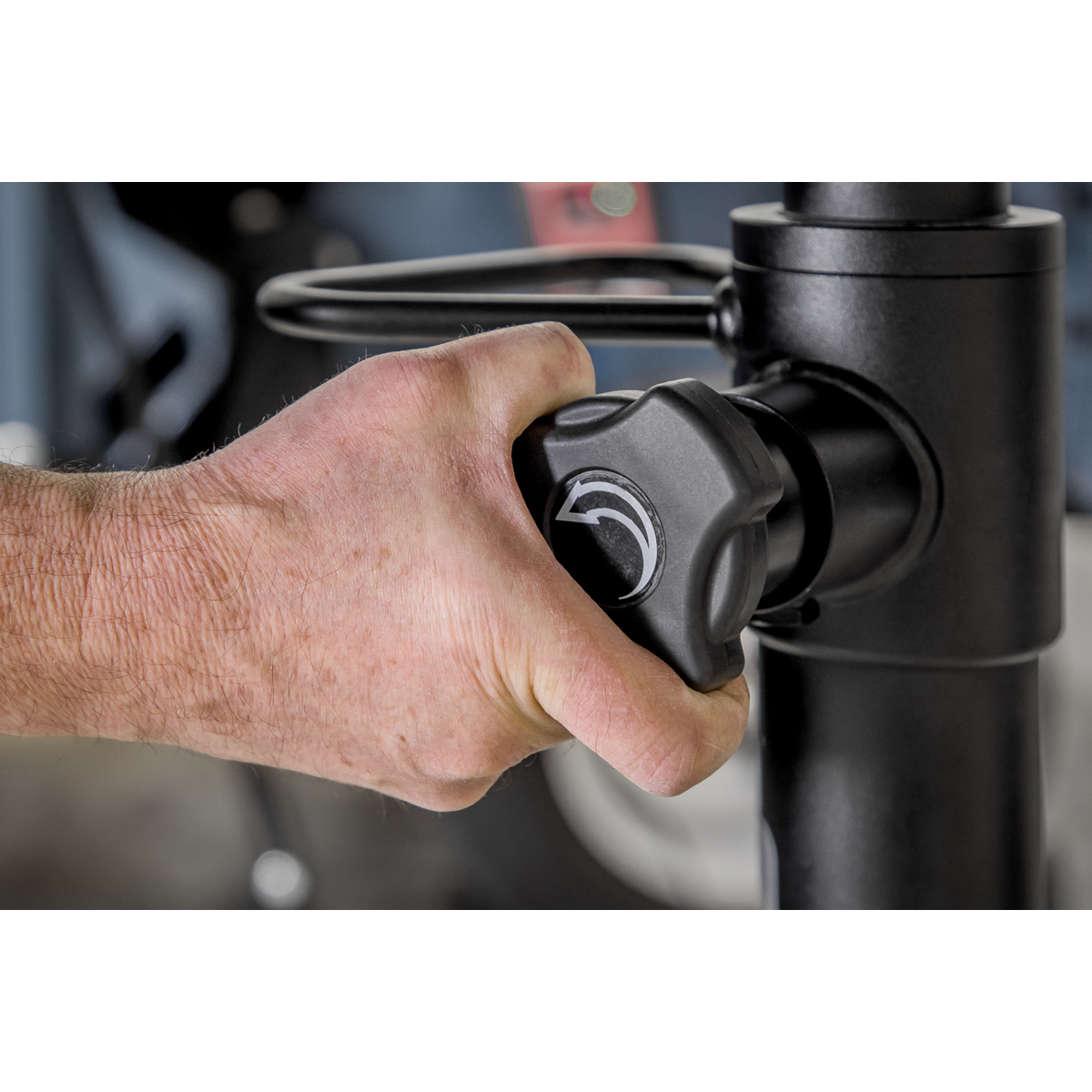

• Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.

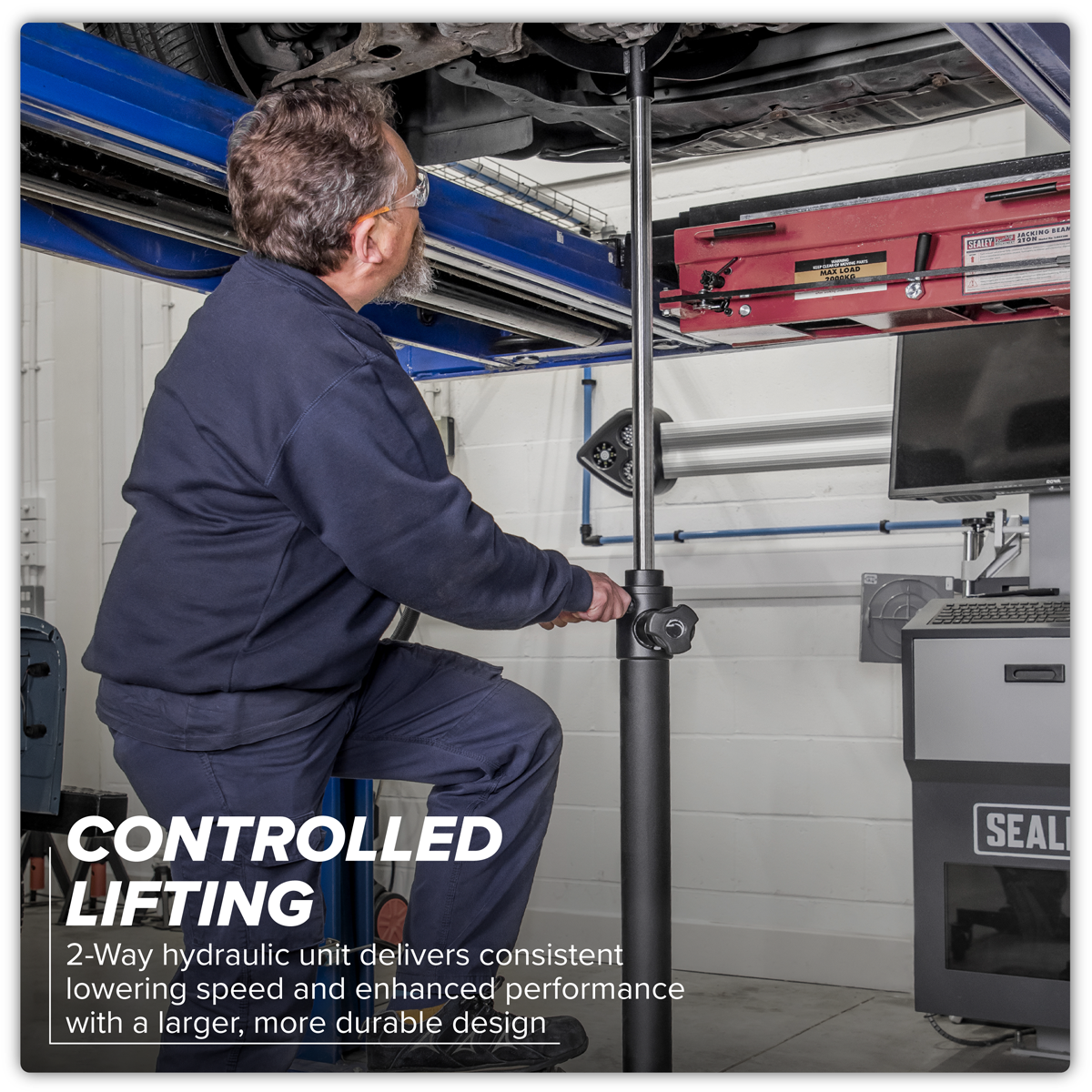

• 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load.
• Hydraulic unit larger than the economy models for improved performance and durability.
• Castors and side handle make the units easily manoeuvrable.
• Suitable for use with optional Adjustable Gearbox Support - Model No. ADT3.
• 3 Year Guarantee*.

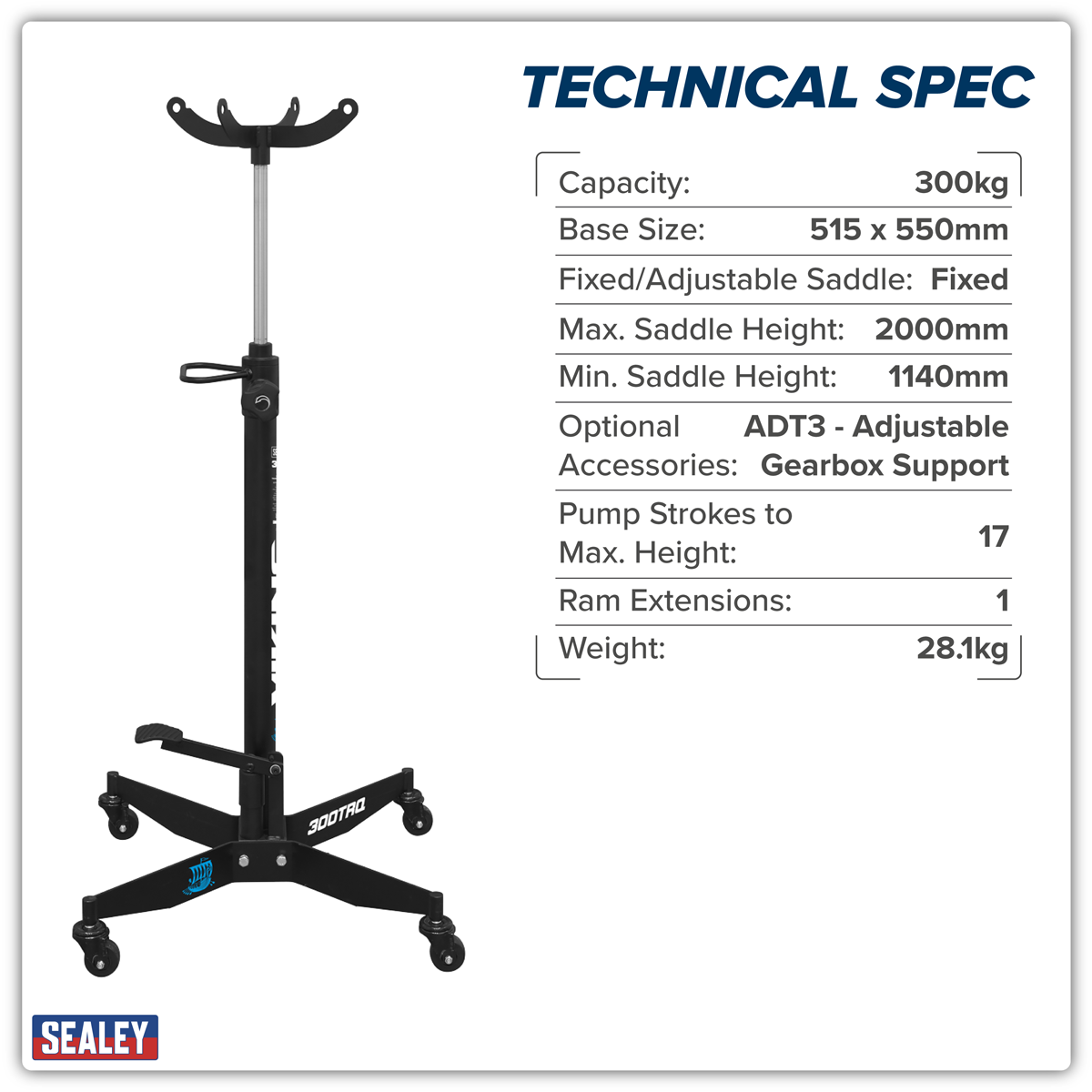

Specifications

Model No	300TRQ
Base Size:	515 x 550mm
Brand:	Premier
Capacity:	300kg
Fixed/Adjustable Saddle:	Fixed

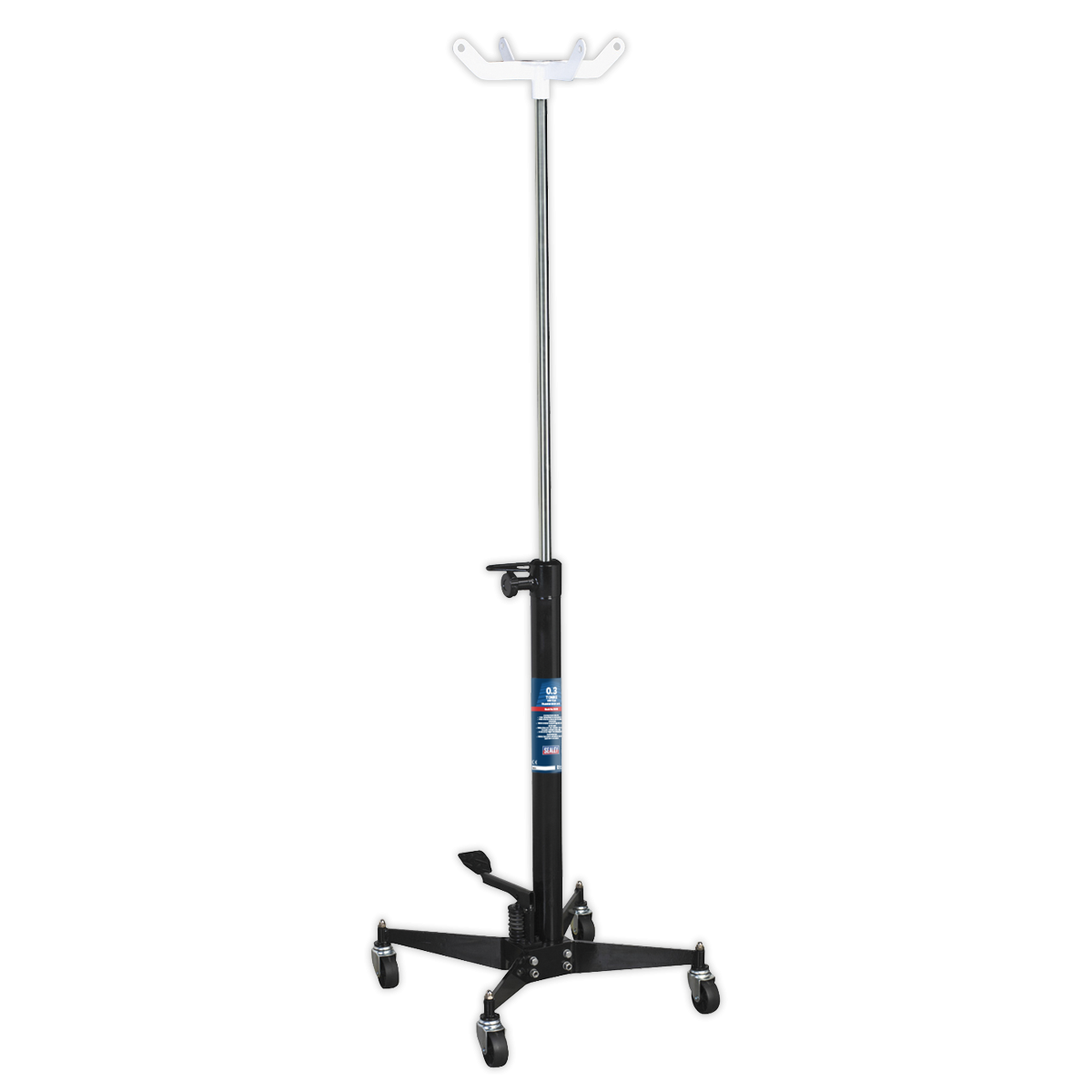

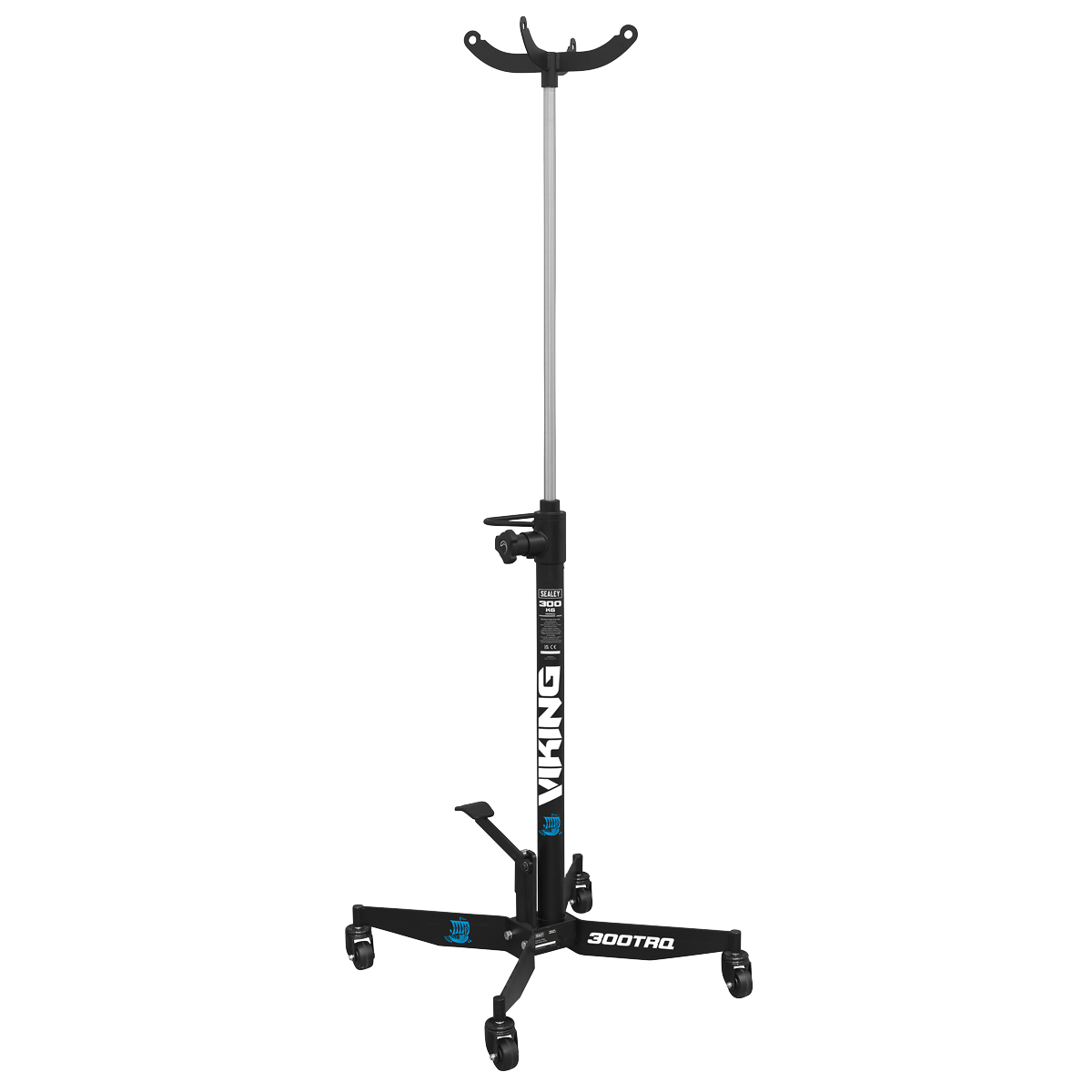

Maximum Saddle Height:	1950mm
Minimum Saddle Height:	1125mm
Nett Weight:	31kg
Optional Accessories:	ADT3 - Adjustable Gearbox Support
Pump Strokes to Maximum Height:	20
Ram Extensions:	1

Documents

Material Safety Data Sheet	View/Download
Instructions	View/Download
Parts Diagrams	View/Download
