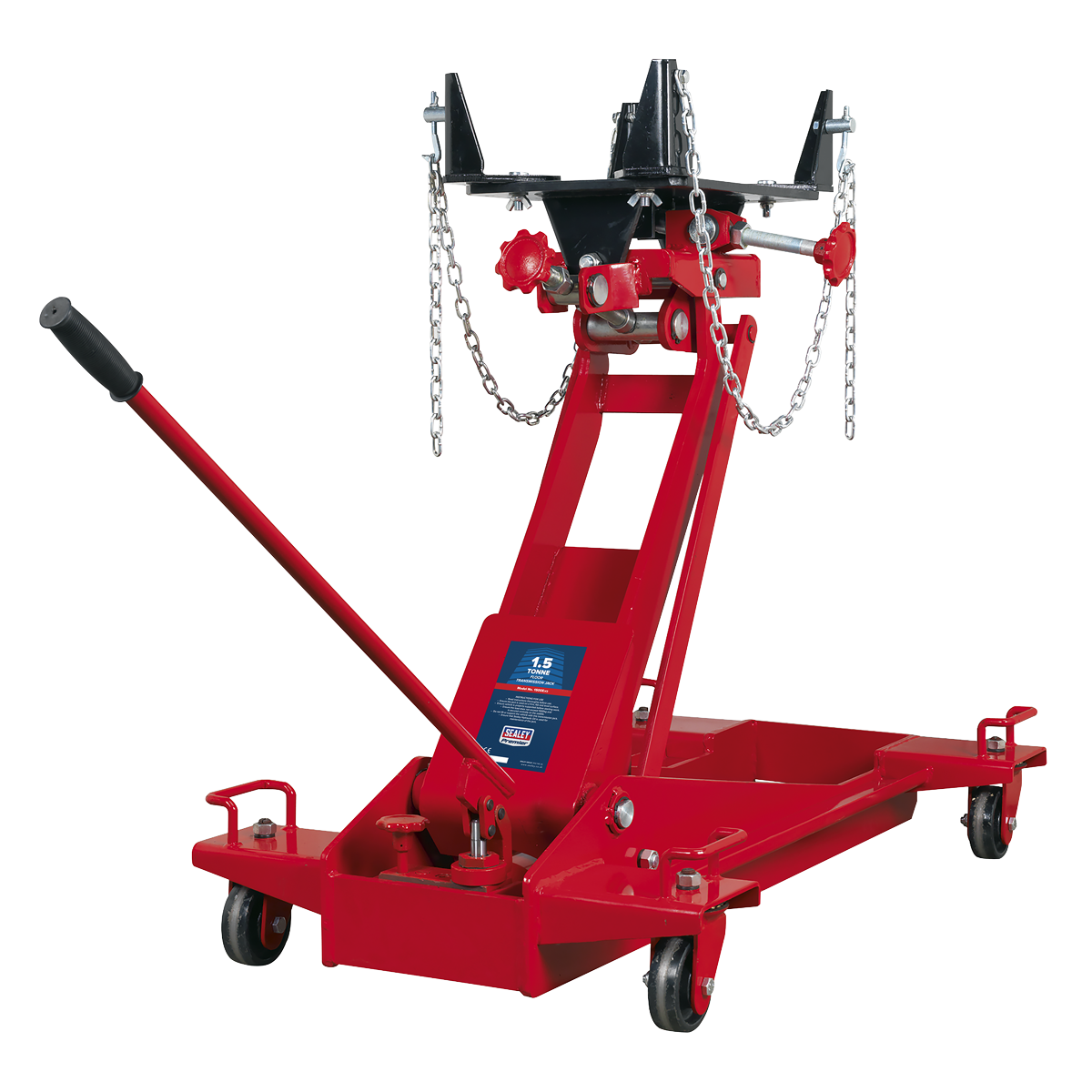

Premier 1500E Floor Transmission Jack 1.5 Tonne

Heavy-duty model supplied with chain for safe loading. Precision valve allows delicate adjustment when taking out gearbox and realigning during replacement. Four castors for extra manoeuvrability in confined spaces. Fully adjustable saddle with forward, backward and side-to-side tilt.

• Supplied with chain for safe loading.
• Precision valve allows delicate adjustment when taking out gearbox and realigning during replacement.
• Four castors for extra manoeuvrability in confined spaces.
• Fully adjustable saddle with forward, backward and side-to-side tilt.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• 3 Year Guarantee*.

Specifications

Model No	1500E
Brand:	Premier
Capacity:	1500kg
Fixed/Adjustable Saddle:	Adjustable
Maximum Saddle Height:	950mm
Minimum Saddle Height:	215mm
Nett Weight:	132kg
Overall Width/Length:	655/1100mm
Saddle Lateral Travel:	n/a
Saddle Pivot:	n/a
Saddle Tilt - Backward:	15°
Saddle Tilt - Forward:	10°
Saddle Tilt - Side-to-Side:	12°
Saddle Width/Length:	n/a

Documents

Instructions	View/Download
Material Safety Data Sheet	View/Download
Parts Diagrams	View/Download
