Description

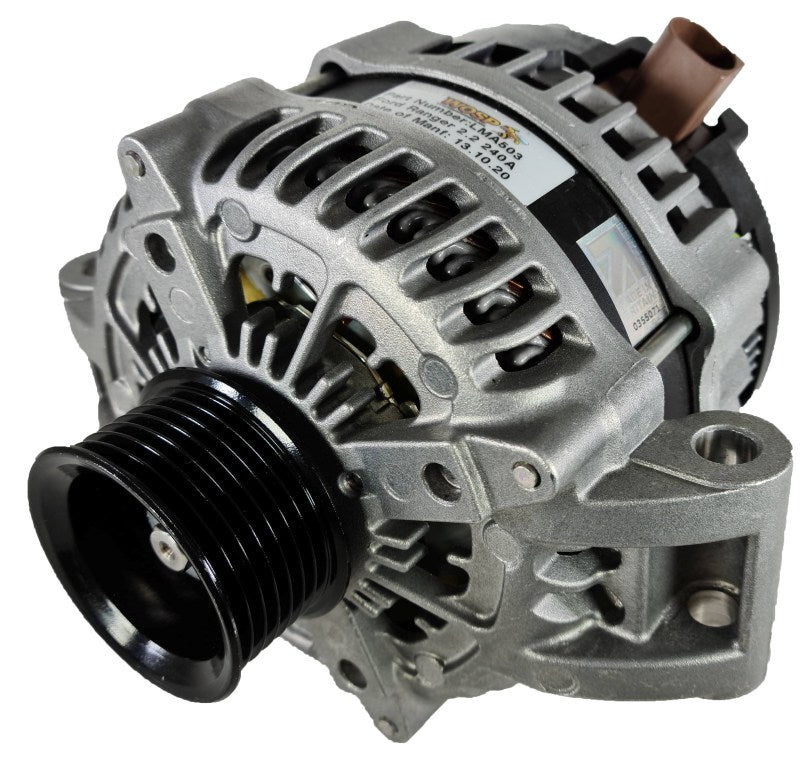

- Ford Ranger 2.2 / 3.2 Diesel GBVAJQJ / T22DD0P / GBVAJQW / SA2R / SA2S / SA2W / SAFA ( 2G / 2N / 2P ) '11-'15
- Lucas LRA03882 Replacement
Amps | 240A |
Construction | Cast |
Connections | B+ / COM / LIN1-D |
Pulley | LMP141 |
Hand | Pad |
Weight | 6.9kg |
300 Series refers to 'latest technology' alternators which use square wire (segment conductor 'hairpin') wire on the stators. These super-efficient units can yield large outputs and we manufacture most of the alternator cases in house from billet, in order to offer a wide range of 'plug & play' alternators.
300 Series alternators can be rewound and uprated to almost double their outputs. Suffix '-HO' is added to the part number. This increase in output is yielded at higher rpm therefore 'HO' 300 Series units often need 1.5-2 times more speed for output and cooling. They are less efficient than a standard unit at low rpm.
